| Manufacturer Part Number | E9A87020TF |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 3.1875" |
| Overall Length (Inch) | 3-3/16" |
| Overall Length (mm) | 80.96mm |
| Length of Cut (Decimal Inch) | 1.3750" |
| Length of Cut (Inch) | 1-3/8" |
| Length of Cut (mm) | 34.93mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 3 |
| Coating | TiAlN |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9A87 |
| Cutting Direction | Right |

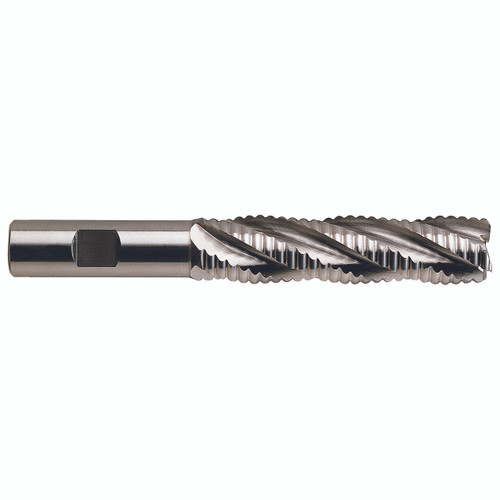

| Product Type | Roughing End Mill |
