Product Specifications
| Manufacturer Part Number | GM960940 |
| Mill Diameter (Inch) | 1/25" |
| Mill Diameter (Decimal Inch) | 0.0400" |
| Mill Diameter (mm) | 1.02mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 1/10" |
| Length of Cut (Decimal Inch) | 0.1000" |
| Length of Cut (mm) | 2.54mm |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (Decimal Inch) | 3.1250" |
| Overall Length (mm) | 79.38mm |
| Ball nose Radius (Inch) | 1/50" |
| Ball Nose Radius (Decimal Inch) | 0.0200" |
| Ball Nose Radius (mm) | 0.51mm |
| LBS (Inch) | 1-1/2" |
| LBS (Decimal Inch) | 1.5000" |
| LBS (mm) | 38.10mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 2 |
| Shank Type | Plain |
| Material | Carbide |

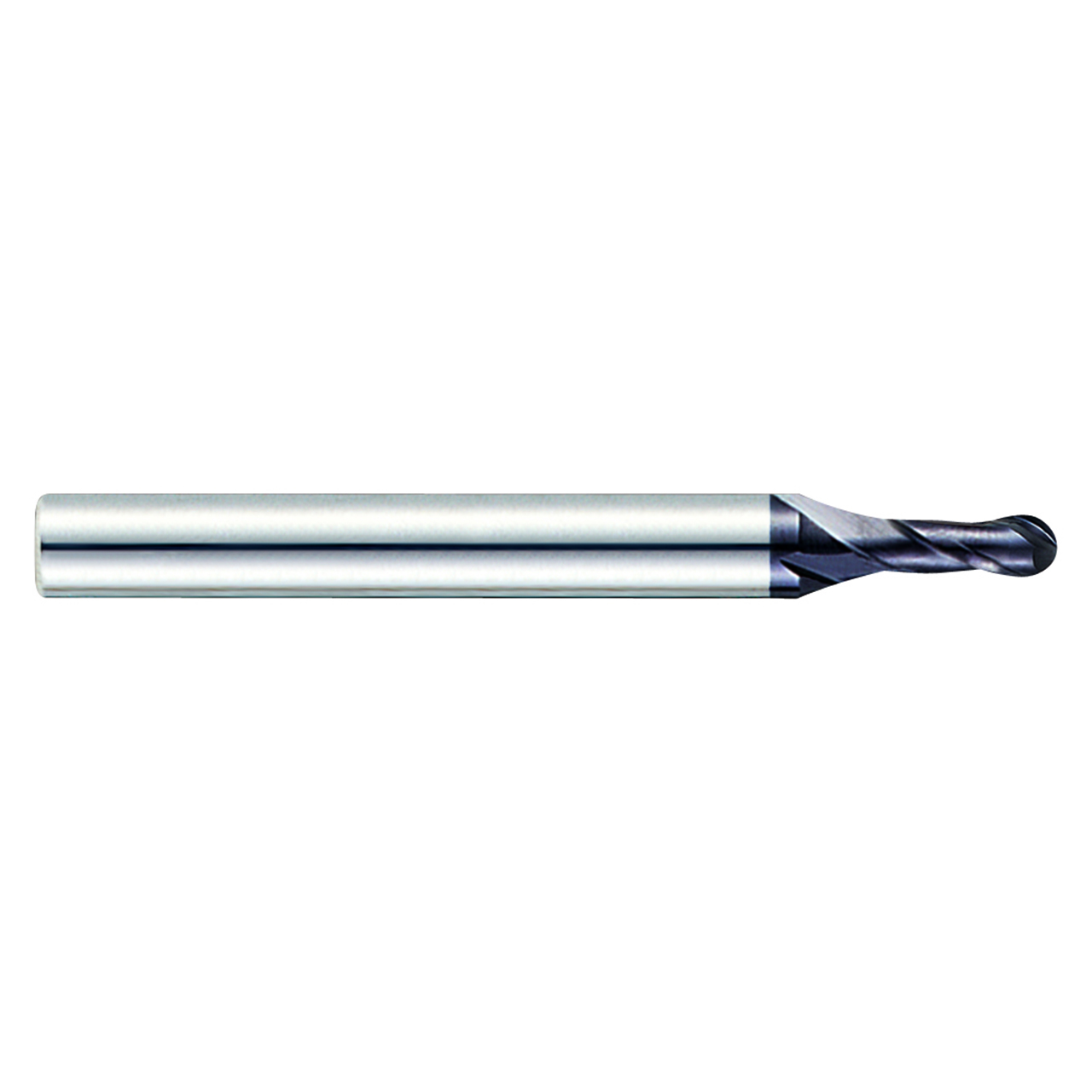

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/25"
Mill Diameter (Decimal Inch):
0.0400"
Mill Diameter (mm):
1.02mm
Number of Flutes:
2
Length of Cut (Inch):
1/10"
Length of Cut (Decimal Inch):
0.1000"
Length of Cut (mm):
2.54mm
Material:
Carbide
Overall Length (Inch):
3-1/8"
Overall Length (Decimal Inch):
3.1250"
Overall Length (mm):
79.38mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
interval quantity:
1
