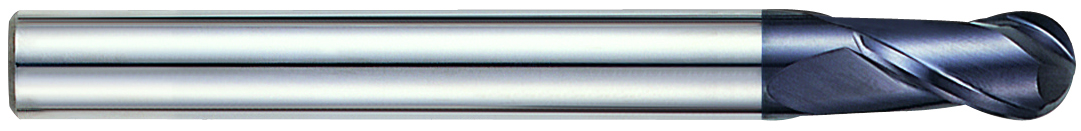

| Manufacturer Part Number | GM109016 |
| Mill Diameter (Inch) | 1/4" |
| Mill Diameter (Decimal Inch) | 0.250" |
| Mill Diameter (mm) | 6.35mm |
| Ball Nose Radius (Inch) | 1/8" |
| Ball Nose Radius (Decimal Inch) | 0.125" |
| Ball Nose Radius (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.250" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.250" |
| Length of Cut (mm) | 6.35mm |
| LBS (Inch) | 1/2" |
| LBS (Decimal Inch) | 0.500" |
| LBS (mm) | 12.70mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.500" |
| Overall Length (mm) | 88.90mm |
| Neck Diameter (Decimal Inch) | 0.246" |
| Neck Diameter (mm) | 6.25mm |
| Shank Type | PLAIN |
| Material | Carbide |
| Coating | Y-Coating |
| Helix Angle (Degree) | 15 Degree |
| Number of Flutes | 2 |
| Series | EM109 |
| Application | P |
| Product Type | Ball Nose End Mill |
