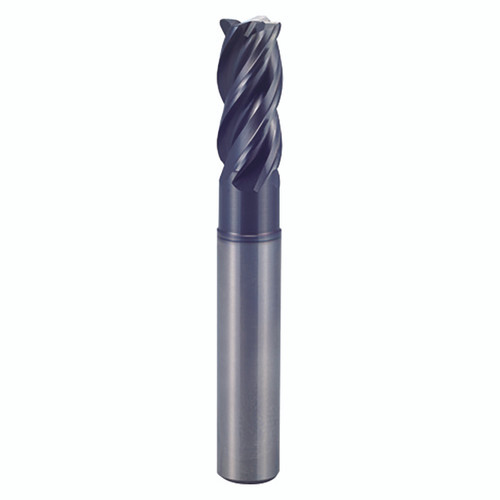

Product Specifications
| Manufacturer Part Number | GMF62935 |
| Diameter (Inch) | 43/91" |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Inch) | 17/27" |
| Length of Cut (Decimal Inch) | 0.6299" |
| Length of Cut (mm) | 16.00mm |
| Overall Length (Inch) | 4-57/94" |
| Overall Length (Decimal Inch) | 4.6063" |
| Overall Length (mm) | 117.00mm |
| Corner Radius (Inch) | 3/38" |
| Corner Radius (Decimal Inch) | 0.0787" |
| Corner Radius (mm) | 2.00mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | GMF62 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Extended Length |
| Application | P, M, K, S |
