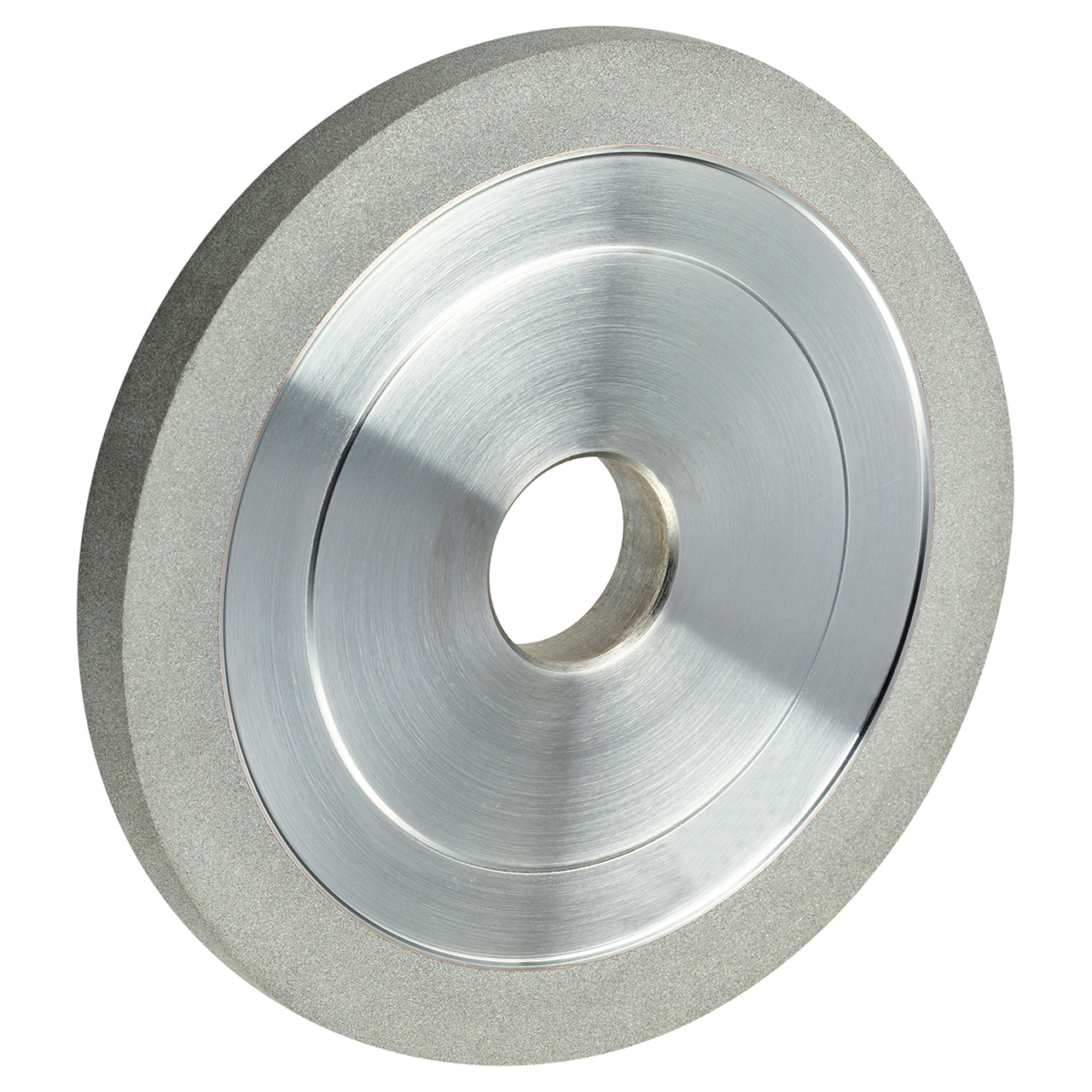

3M 7010495339 | 1.250" Center Hole Diameter x 5.000" Overall Diameter x 0.250" Thickness x 665PL Wheel Type 1V1 Polyimide Hybrid Bond Diamond Wheel

$486.39
Ships:
From Manufacturer
interval quantity:
1
Ships:
From Manufacturer
SKU:
45049438
UPC:
76308276812
Weight:
0.12 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The 3M diamond polyimide wheel 665PL is used in the production and sharpening of carbide cutting tools. This general purpose wheel is designed to give you the best balance of form retention and the free-cut rate when used with water based lubricants.

Designed for Precision
  • Polyimide bonded diamond wheels are designed for high performance grinding on carbide. The 3M diamond polyimide wheel 665PL line is specifically designed for the production and sharpening of cutting tools, including end work, gashing and cutting primary and secondary relief edges. Primary relief involves removing material directly behind the cutting edge to enhance chip clearance. For secondary relief, a slight bevel is ground next to the primary relief. End work grinds a small relief angle on the tip of the tool, while gashing adds a slot along the cutting face to allow for chip flow. Each of these processes require the highest level of quality that the 3M diamond polyimide wheel 665PL provides.
High Quality Bonding
  • This superabrasive wheel also uses a polyimide bonding and is specially designed to resist thermal and chemical deterioration, which can occur during high speed grinding. This R-rated bond is very hard and excellent for precision work on softer tool metals like carbide. This also allows for longer run times and longer over-all wheel life. Used in wet grinding applications with high volume flood coolant systems, this bonding material can be used with wither water or oil based lubricants for greater flexibility.
The Right Wheels for the Job
  • 3M provides a broad portfolio of superabrasive wheels used for your round tool relief and clearance angle applications. They feature a variety of metal cores, including aluminum, steel, composite and copper, and can be cut with custom arbor holes to fit customer specifications. From short runs and re-sharpening to "lights-out" and long production runs, 3M has the wheel design to meet your needs.

Features:

  • Diamond abrasive for use when grinding cemented carbide, tungsten carbide and ceramics
  • Durable polyimide bond resists deterioration from heat, extending the life of the abrasive wheel
  • Designed to provide the best form retention and longest wheel life
  • Various wheel designs are available for gashing, primary and secondary relief and end work
  • Arbor holes are made to customer specifications

Product Specifications
Manufacturer Part Number7010495339
Legacy SKU65500395606
Abrasive MaterialDiamond
Center Hole Diameter (Inch)1.25"
Center Hole Diameter (mm)31.75mm
Overall Diameter (Inch)5.0"
Overall Diameter (mm)127.0mm
Overall Thickness (Inch)0.25"
Overall Thickness (mm)6.35mm
Product FormWheel
Product Number665PL
Wheel Type1V1
