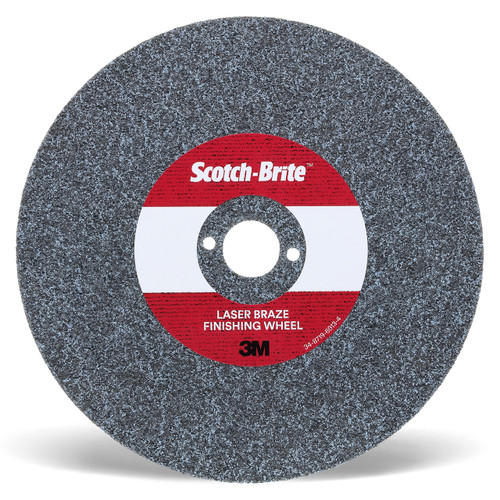

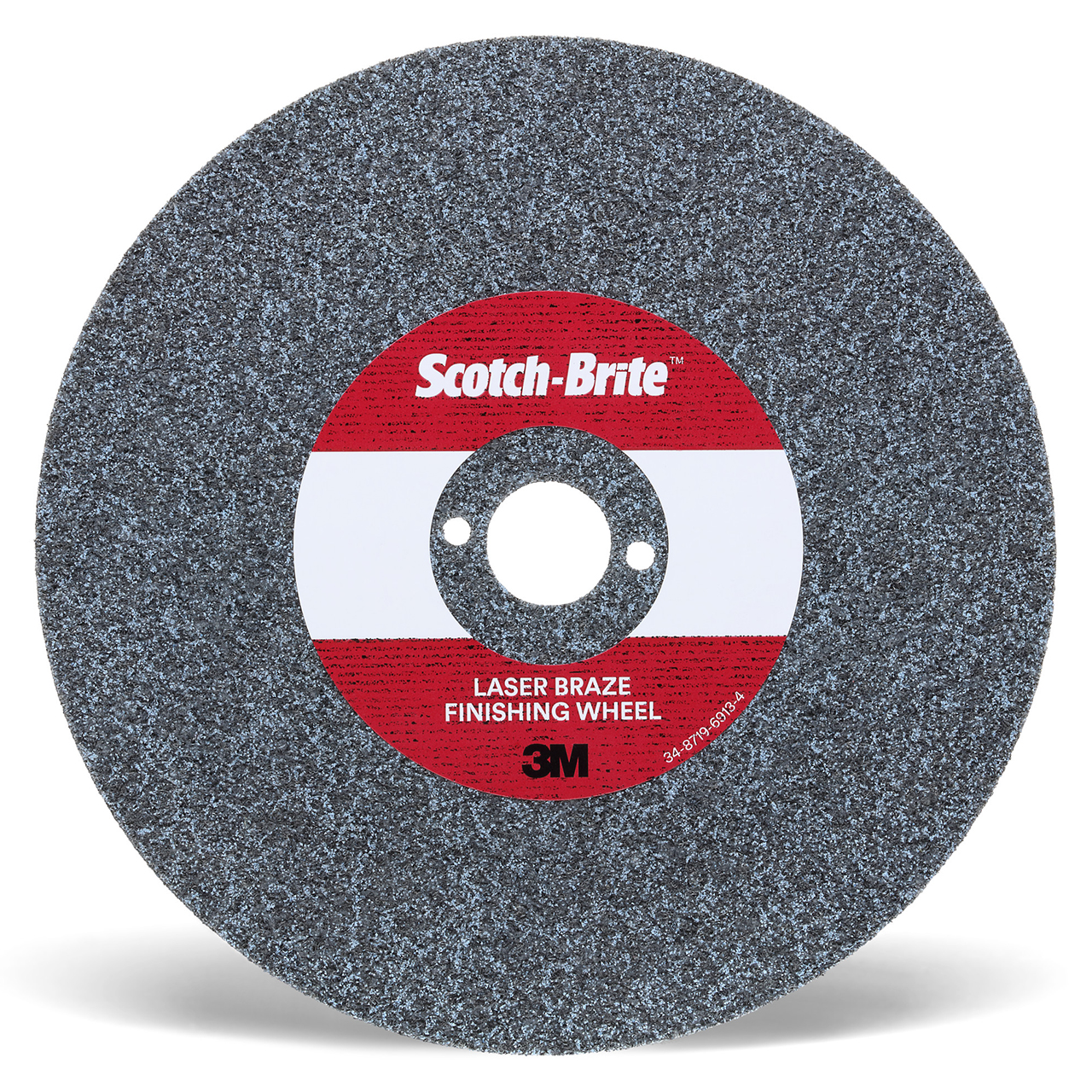

The Scotch-Brite laser braze finishing wheel is designed to blend and finish imperfections left by laser brazing during automotive production. It combines Scotch-Brite non-woven material with 3M precision shaped grain for faster cutting action and greater durability on Silicon Bronze and other metals.
Features:
- Designed to blend and finish silicon bronze parts during laser brazing
- Open web construction resists loading and extends effective service life
- Flexible Scotch-Brite material reduces need for recalibration and adjustments
- 3M precision shaped grains provide excellent cut rate and a smooth finish
Product Specifications
| Manufacturer Part Number | 7100117442 |
| Legacy SKU | 61500315157 |
| Center Hole Diameter (Inch) | 0.25" |
| Center Hole Diameter (mm) | 6.35mm |
| Face Width (Inch) | 0.126" |
| Form Type | Unitized |
| Abrasive Material | Precision Shaped Ceramic |
| Face Width (mm) | 3.2mm |
| Overall Diameter (Inch) | 3.0" |
| Overall Diameter (mm) | 76.2mm |
| Maximum Speed | 15100.0 RPM |
| Grade | Non Pertinent |
| Product Form | Wheel |
| Application | Deburring, Finishing |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Wheel Diameter (Inch):
3"
Wheel Diameter (mm):
76.20mm
Center Hole Size (Inch):
1/4"
Center Hole Size (Decimal Inch):
0.2500"
Center Hole Size (mm):
6.35mm
Face Width (Decimal Inch):
0.1260"
Maximum RPM:
15100.0 rpm
Grade:
Non Pertinent
interval quantity:
40
