3M 7100213466 | 7420X Dynatel Locator

Description

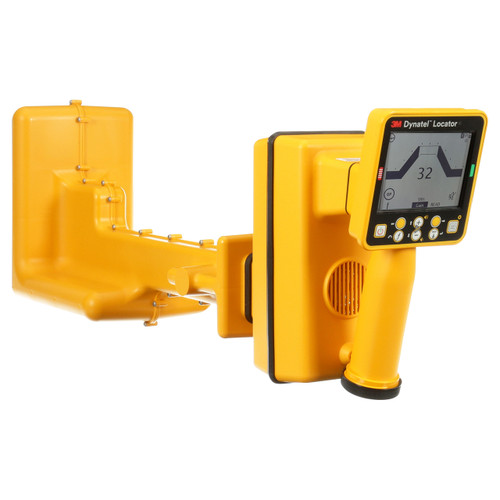

The 3M 7100213466 Dynatel 7420X is a high-performance locating instrument that can accurately detect, map, and interact with 3M Electronic Marking System Tape and industry-standard electronic markers. The 7420X has six active direct-connect frequencies, four induction frequencies, integrated GPS and Bluetooth connectivity, a large backlit graphic display, and trace-view mapping to help you find things faster and with less effort. The unit is lightweight and ergonomically balanced, and it supports read/write EMS ID markers on compatible models. It also stores trace data for workflow review. Built for field use, the Dynatel 7420X has a long battery life thanks to a Li-Ion pack with an integrated charger, an easy-to-use interface, and advanced signal discrimination for congested utility corridors. Use the 3M 7100213466 when maintenance crews and survey teams need dependable, repeatable locating, clear marker identification, and trace mapping to improve accuracy, reduce downtime, and support safe excavation decisions.

Product Features and Benefits

Six active direct-connect frequencies

Provide direct connection to multiple cable types and conductors, enabling rapid, measurable detection across different utilities and conditions.

Trace View Mapping and On-Board Data

Visual trace mode displays route and signal strength on the screen for immediate mapping and post-job review, improving location accuracy.

Four Induction Frequencies For Non-Contact Locating

The 7420X has an induction mode that allows for non-direct connection to buried conductors and tracer wires, which is useful in difficult-to-access or live installations.

Integrated GPS and Bluetooth Communications

The 3M Dynatel Locator 7420X features onboard GPS timestamps and geo-referenced traces, while Bluetooth allows data transfer and remote control with compatible devices.

EMS iD read/write marker capability

Reads and writes 3M Electronic Marking System Tape identifiers and locates industry-standard electronic markers for positive asset identification.

Frequently Asked Questions

Can the 7420X locate 3M Electronic Marking System Tape?

Yes, the 3M 7100213466 Dynatel 7420X is made to locate and follow the path of 3M EMS tape.

Does this locator read and write EMS iD markers?

Yes, select 7420X models support read/write capability for 3M iD markers to identify buried assets.

Is GPS included for trace mapping on the Dynatel 7420X?

Yes, integrated GPS records trace positions and allows georeferenced trace export for reporting.

Are there induction modes for non-direct locating?

Yes, the unit offers four induction frequencies, enabling non-contact locating of conductors and tracer wires.
