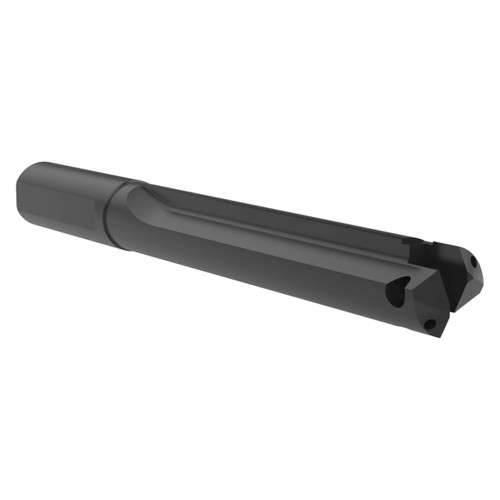

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 20881-2500 |
| Flute Length (Inch) | 15" |
| HP Reference Length (Inch) | 15-31/32" |
| Overall Length (Inch) | 21" |
| Shank length (Inch) | 6" |
| Maximum Diameter (Inch) | 8-1/2" |
| Minimum Diameter (Inch) | 4" |
| Shank Diameter (Inch) | 2-1/2" |
| Pipe Tap Side (Inch) | 1/2" |
| Series | H |
| Shank Type | Lathe |
| Flute Type | Straight |
| Length Type | Standard |
| Deep Hole | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
H
Minimum Drill Diameter (Inch):
4"
Minimum Drill Diameter (Decimal Inch):
4.0000"
Minimum Drill Diameter (mm):
101.60mm
Maximum Drill Diameter (Inch):
8-1/2"
Maximum Drill Diameter (Decimal Inch):
8.5000"
Maximum Drill Diameter (mm):
215.90mm
Shank Type:
Lathe
Flute Type:
Straight
