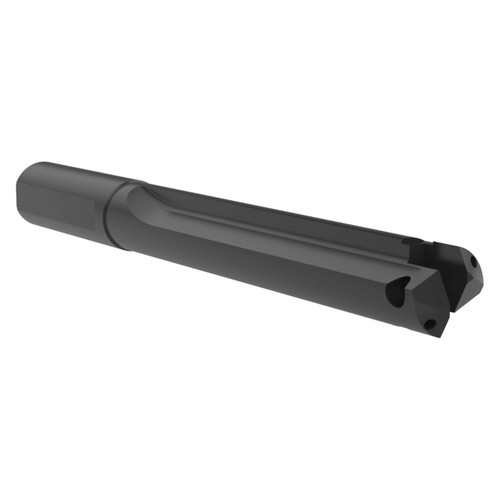

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 21021-1250 |
| Flute Length (Inch) | 15" |
| HP Reference Length (Inch) | 15-9/32" |
| Overall Length (Inch) | 18-1/2" |
| Shank length (Inch) | 3-1/2" |
| Maximum Diameter (Inch) | 1-3/4" |
| Minimum Diameter (Inch) | 1-1/4" |
| Shank Diameter (Inch) | 1-1/4" |
| Pipe Tap Side (Inch) | 1/4" |
| Series | B |
| Shank Type | Lathe |
| Flute Type | Straight |
| Length Type | Long |
| Deep Hole | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
B
Minimum Drill Diameter (Inch):
1-1/4"
Minimum Drill Diameter (Decimal Inch):
1.2500"
Minimum Drill Diameter (mm):
31.75mm
Maximum Drill Diameter (Inch):
1-3/4"
Maximum Drill Diameter (Decimal Inch):
1.7500"
Maximum Drill Diameter (mm):
44.45mm
Shank Type:
Lathe
Overall Length (Inch):
18-1/2"
Overall Length (Decimal Inch):
18.5000"
Overall Length (mm):
469.90mm
Flute Type:
Straight
interval quantity:
1
