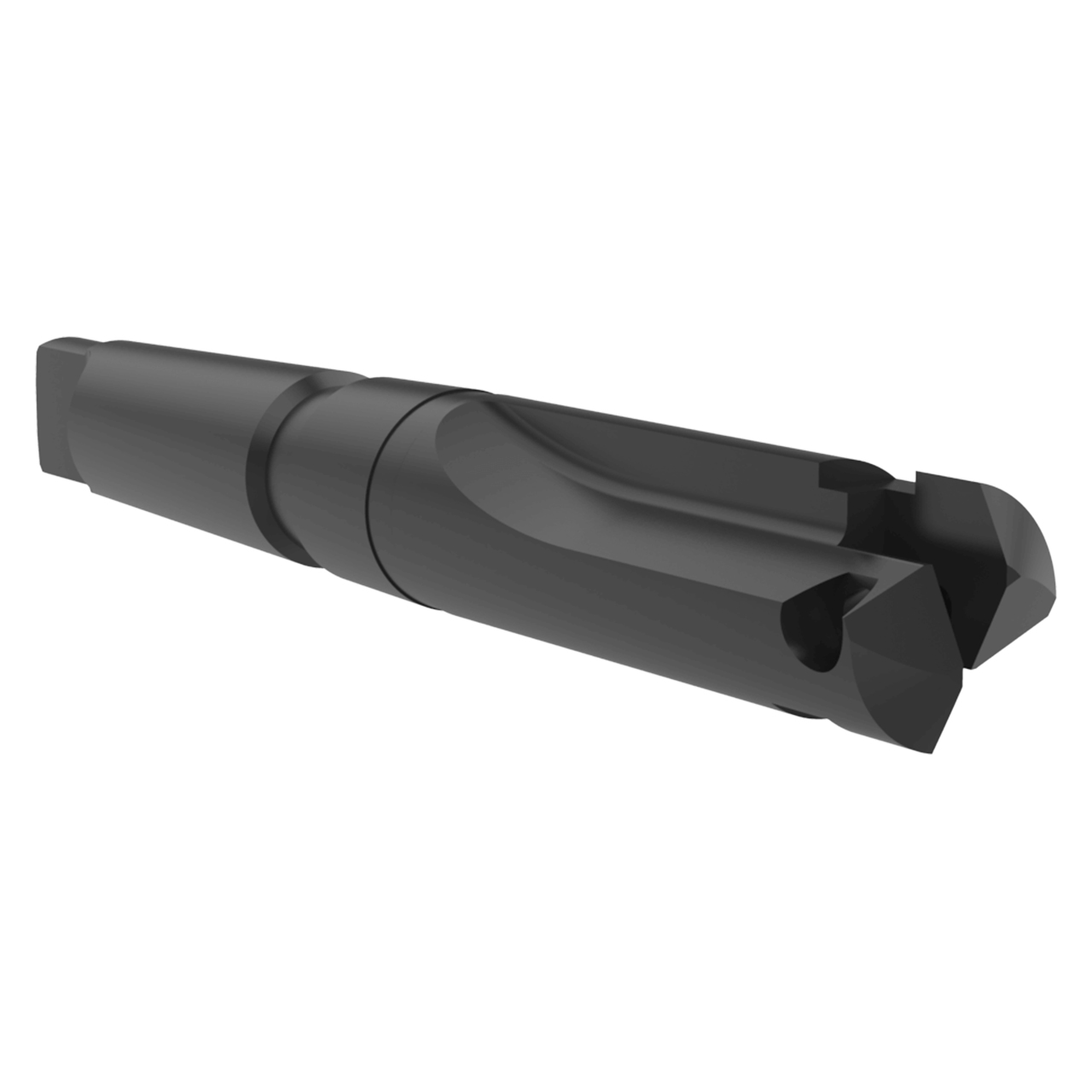

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 21521-0004 |
| Flute Length (Inch) | 3-1/2" |
| HP Reference Length (Inch) | 4-1/32" |
| Overall Length (Inch) | 8-3/8" |
| Shank length (Inch) | 4-7/8" |
| Maximum Diameter (Inch) | 1-3/4" |
| Minimum Diameter (Inch) | 1-1/4" |
| Shank Diameter (Inch) | #4 MT |
| Series | B |
| Shank Type | Morse Taper |
| Flute Type | Straight |
| Length Type | Short |
| Deep Hole | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
B
Minimum Drill Diameter (Inch):
1-1/4"
Minimum Drill Diameter (Decimal Inch):
1.2500"
Minimum Drill Diameter (mm):
31.75mm
Maximum Drill Diameter (Inch):
1-3/4"
Maximum Drill Diameter (Decimal Inch):
1.7500"
Maximum Drill Diameter (mm):
44.45mm
Shank Type:
Morse Taper
Overall Length (Inch):
8-3/8"
Overall Length (Decimal Inch):
8.3800"
Overall Length (mm):
212.73mm
Flute Type:
Straight
interval quantity:
1
