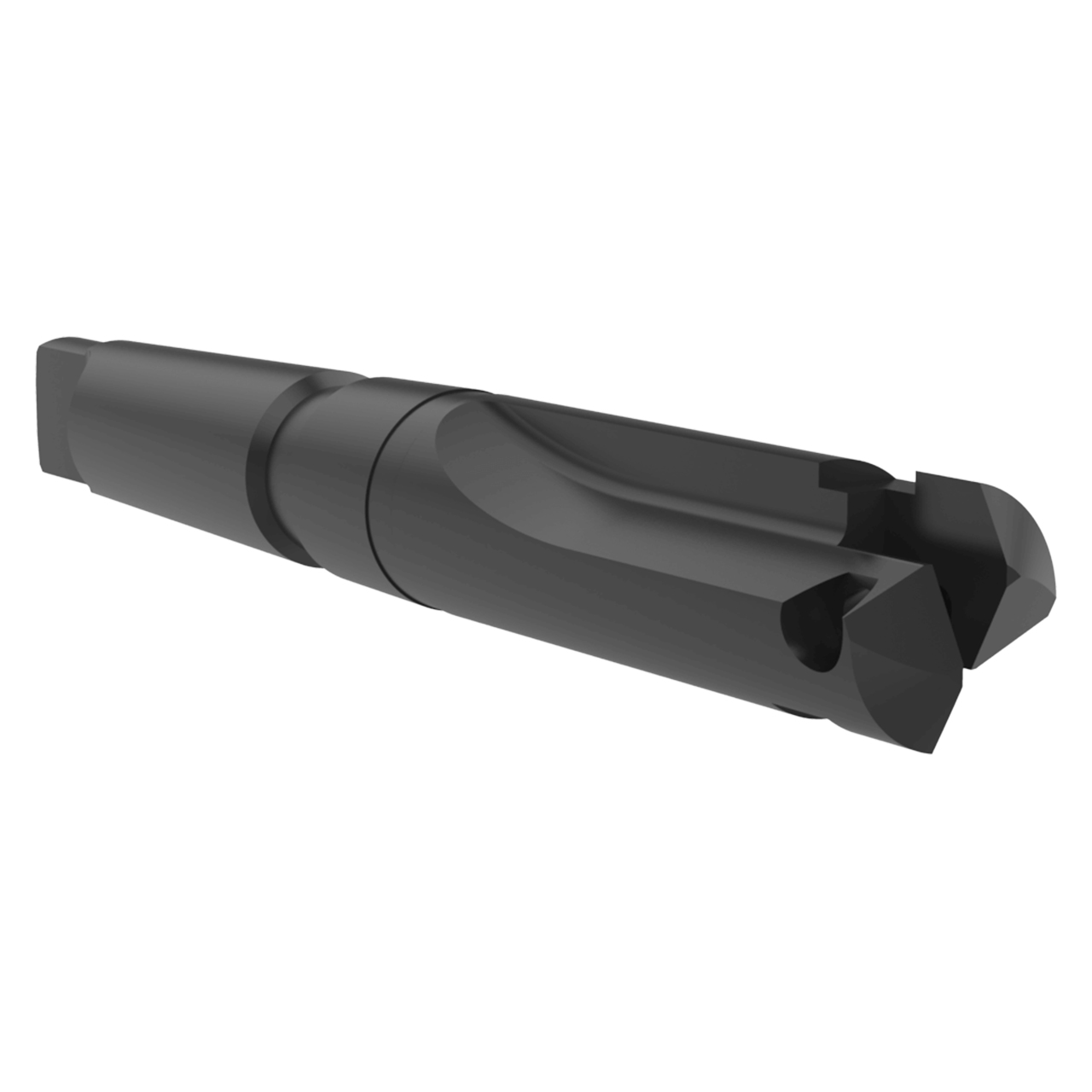

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 21571-0005 |
| Flute Length (Inch) | 6" |
| HP Reference Length (Inch) | 7-1/32" |
| Overall Length (Inch) | 12-1/8" |
| Shank length (Inch) | 6-1/8" |
| Maximum Diameter (Inch) | 4-1/2" |
| Minimum Diameter (Inch) | 3-1/2" |
| Shank Diameter (Inch) | #5 MT |
| Series | G |
| Shank Type | Morse Taper |
| Flute Type | Straight |
| Length Type | Short |
| Deep Hole | No |
