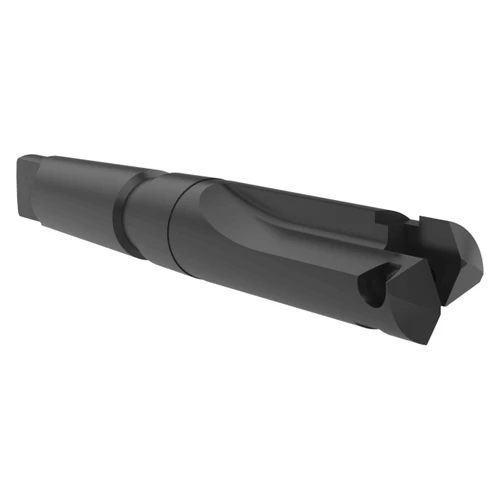

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 21881-0006 |
| Flute Length (Inch) | 15" |
| HP Reference Length (Inch) | 18-19/32" |
| Overall Length (Inch) | 25-7/8" |
| Shank length (Inch) | 8-9/16" |
| Maximum Diameter (Inch) | 8-1/2" |
| Minimum Diameter (Inch) | 4" |
| Shank Diameter (Inch) | #6 MT |
| Pipe Tap Side (Inch) | 1/2" |
| Series | H |
| Shank Type | Morse Taper |
| Flute Type | Straight |
| Length Type | Standard |
| Deep Hole | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
H
Minimum Drill Diameter (Inch):
4"
Minimum Drill Diameter (Decimal Inch):
4.0000"
Minimum Drill Diameter (mm):
101.60mm
Maximum Drill Diameter (Inch):
8-1/2"
Maximum Drill Diameter (Decimal Inch):
8.5000"
Maximum Drill Diameter (mm):
215.90mm
Shank Type:
Morse Taper
Flute Type:
Straight
interval quantity:
1
