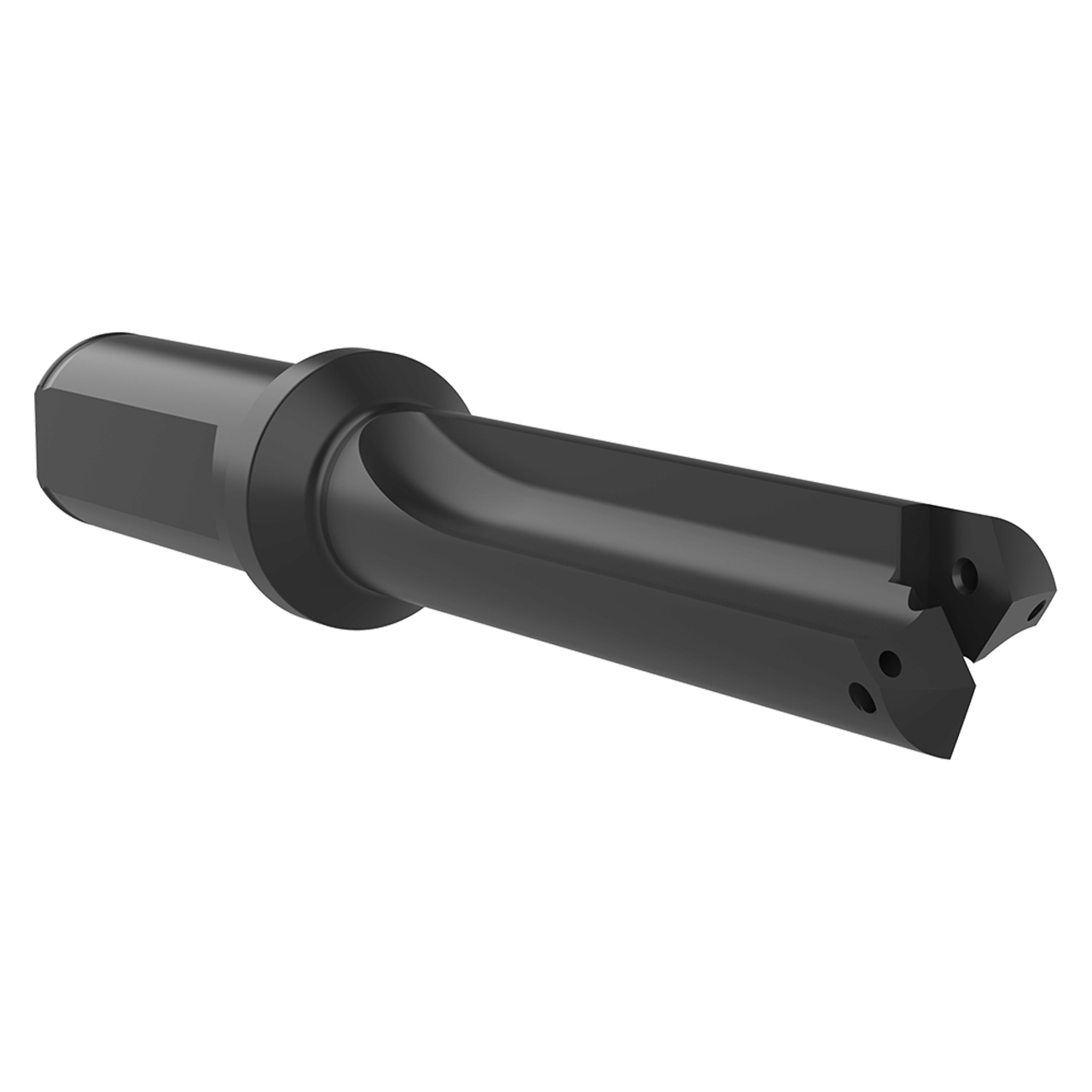

Allied Machine's T-A Holders offer a large variety of options to accommodate any of your holemaking needs.
Features:
- Helical or Straight flute designs
- Lathe, morse taper, or flange style shanks
- Through coolant optimizes chip evacuation and improved
Product Specifications
| # MFG | 22015S-100F |
| Body Length (Inch) | 4-7/32" |
| Drill Depth (Inch) | 2-5/8" |
| Flute Type | Straight |
| Length Type | Short |
| Maximum Diameter (Inch) | 15/16" |
| Minimum Diameter (Inch) | 55/64" |
| Overall length (Inch) | 6-1/2" |
| Pipe Tap Rear (Inch) | 1/8" |
| Series | 1.5 |
| Shank Diameter (Inch) | 1 |
| Shank Length (Inch) | 2-9/32" |
| Shank Type | Flanged |
| Tool Reference Length (Inch) | 4-23/64" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
1.5
Minimum Drill Diameter (Inch):
55/64"
Minimum Drill Diameter (Decimal Inch):
0.8600"
Minimum Drill Diameter (mm):
21.83mm
Maximum Drill Diameter (Inch):
15/16"
Maximum Drill Diameter (Decimal Inch):
0.9400"
Maximum Drill Diameter (mm):
23.81mm
Shank Type:
Flanged
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
6-1/2"
Overall Length (Decimal Inch):
6.5000"
Overall Length (mm):
165.10mm
Flute Type:
Straight
