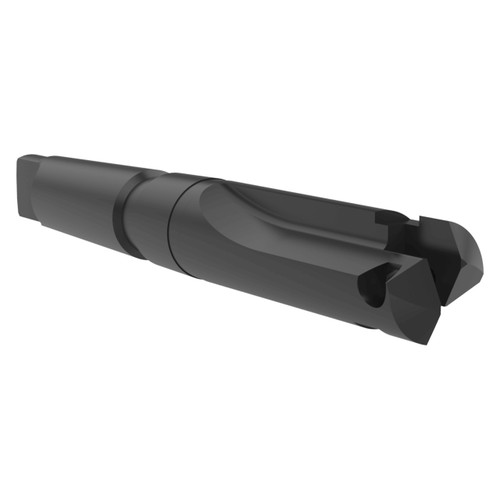

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 22041-0004 |
| Flute Length (Inch) | 18" |
| HP Reference Length (Inch) | 20-27/64" |
| Overall Length (Inch) | 24-9/16" |
| Shank length (Inch) | 4-7/8" |
| Maximum Diameter (Inch) | 2-7/8" |
| Minimum Diameter (Inch) | 2" |
| Shank Diameter (Inch) | #4 MT |
| Pipe Tap Side (Inch) | 1/4" |
| Series | D |
| Shank Type | Morse Taper |
| Flute Type | Straight |
| Length Type | Long |
| Deep Hole | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
D
Minimum Drill Diameter (Inch):
2"
Minimum Drill Diameter (Decimal Inch):
2.0000"
Minimum Drill Diameter (mm):
50.80mm
Maximum Drill Diameter (Inch):
2-7/8"
Maximum Drill Diameter (Decimal Inch):
2.8800"
Maximum Drill Diameter (mm):
73.03mm
Shank Type:
Morse Taper
Flute Type:
Straight
