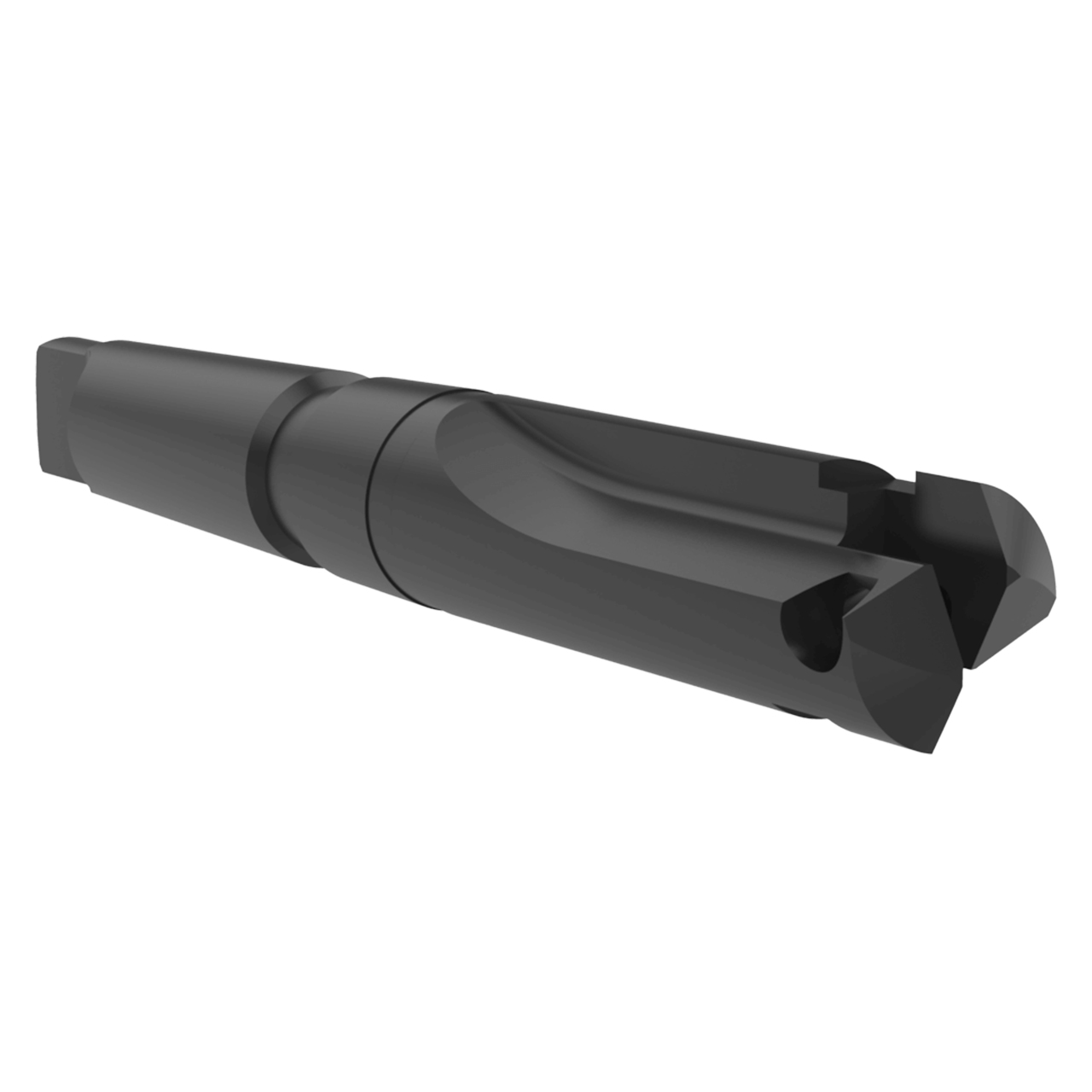

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 22071-0005 |
| Flute Length (Inch) | 24" |
| HP Reference Length (Inch) | 27-11/32" |
| Overall Length (Inch) | 32-7/16" |
| Shank length (Inch) | 6-1/8" |
| Maximum Diameter (Inch) | 4-1/2" |
| Minimum Diameter (Inch) | 3-1/2" |
| Shank Diameter (Inch) | #5 MT |
| Pipe Tap Side (Inch) | 1/2" |
| Series | G |
| Shank Type | Morse Taper |
| Flute Type | Straight |
| Length Type | Long |
| Deep Hole | Yes |
