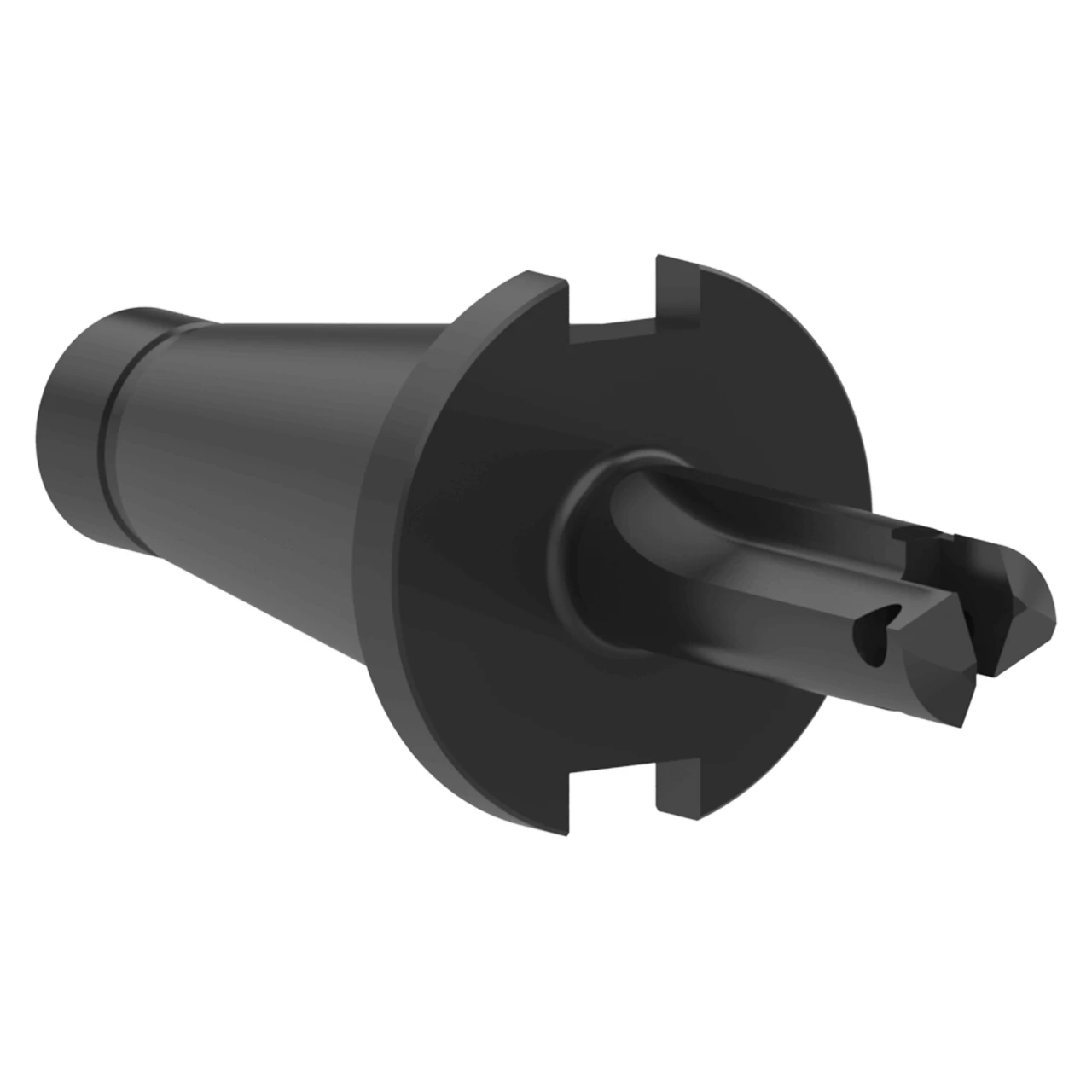

HP spade drills and Universal spade drills fit into the Universal holders.
Features:
- Universal style holders accommodate a wide range of diameters that are available in the HP and Universal insert lines
Product Specifications
| # MFG | 22661-0050 |
| Flute Length (Inch) | 5-1/2" |
| HP Reference Length (Inch) | 9-19/32" |
| Overall Length (Inch) | 13-15/16" |
| Shank length (Inch) | 5-5/8" |
| Maximum Diameter (Inch) | 3-7/8" |
| Minimum Diameter (Inch) | 3" |
| Series | F |
| Shank Type | NMTB 50 |
| Flute Type | Straight |
| Length Type | Short |
| Deep Hole | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
F
Minimum Drill Diameter (Inch):
3"
Minimum Drill Diameter (Decimal Inch):
3.0000"
Minimum Drill Diameter (mm):
76.20mm
Maximum Drill Diameter (Inch):
3-7/8"
Maximum Drill Diameter (Decimal Inch):
3.8800"
Maximum Drill Diameter (mm):
98.43mm
Shank Type:
NMTB 50
Overall Length (Inch):
13-15/16"
Overall Length (Decimal Inch):
13.9400"
Overall Length (mm):
354.01mm
Flute Type:
Straight
