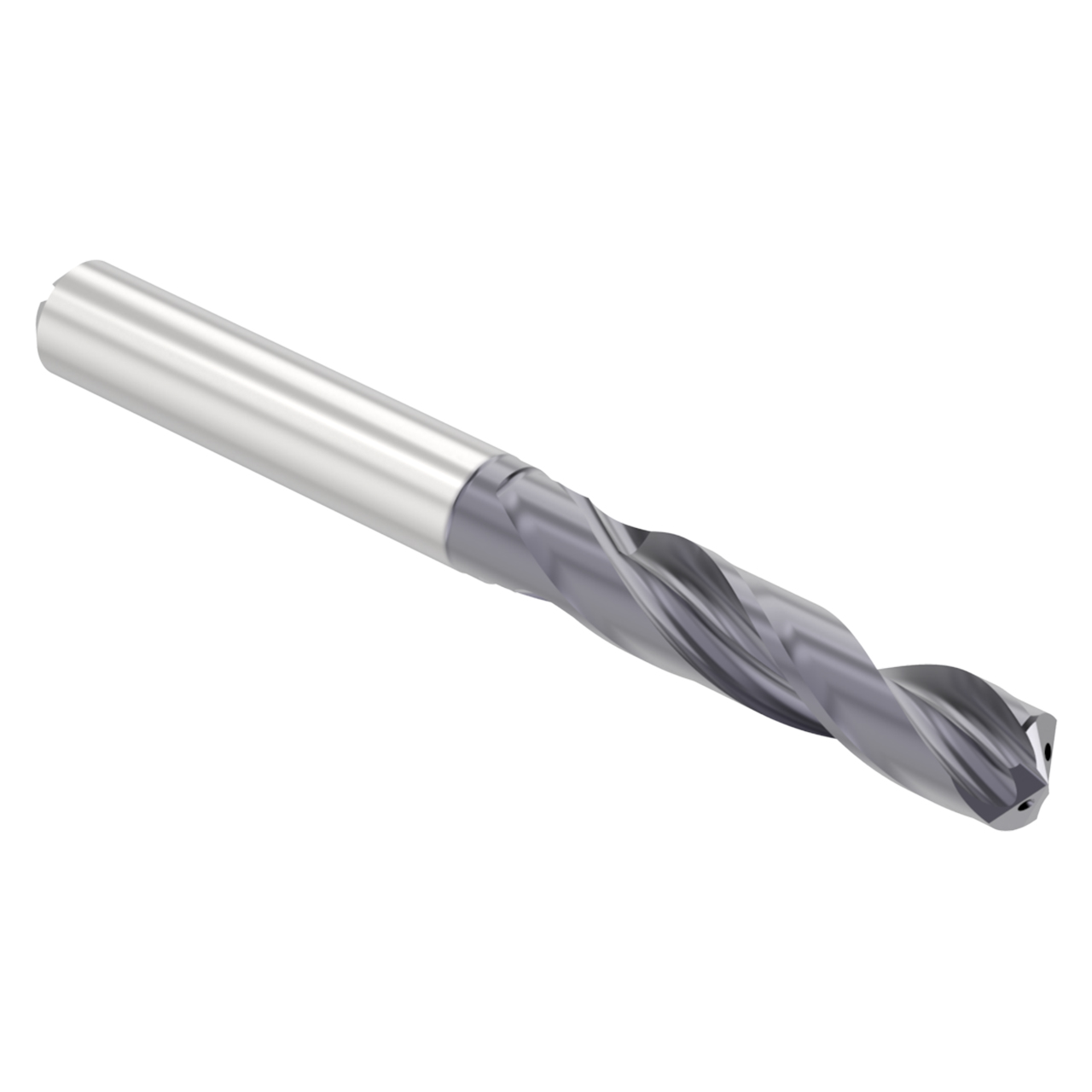

Solid carbide tools with patent pending geometry for 3-20mm diameter product range. High productivity in difficult materials. Ideal for use in Stainless Steel, Inconel, Hastelloy, and Titanium.
Features:
- Unique combination of geometry and coating allows for use in a wide variety of applications
- Reinforced shank adds durability
- Through coolant design
Product Specifications
| # MFG | 335E03320A21M |
| Diameter (Inch) | 0.3320" |
| Diameter (mm) | 8.43mm |
| Drill Depth (Inch) | 1.378" |
| Drill Depth (mm) | 35mm |
| Overall Length (Inch) | 3.570" |
| Overall Length (mm) | 90.70mm |
| Shank Diameter (mm) | 10mm |
| Shank Length (mm) | 40mm |
| Coating | Multi-Layer TiAlN |
| Coolant | Yes |
| Flute Type | Helical |
| Grade | Carbide |
| Length Type | 3.5xD |
| Shank type | Cylindrical |
