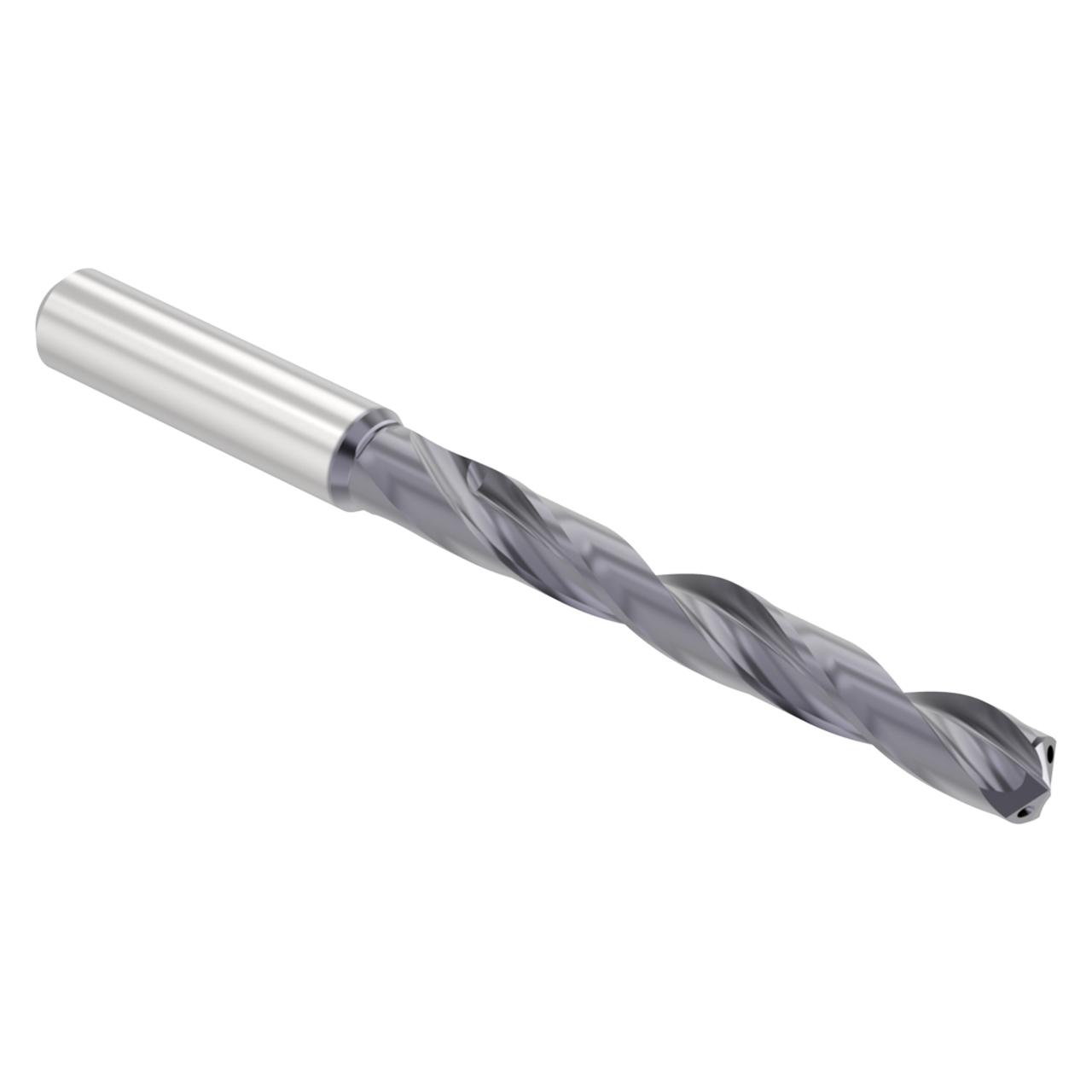

Solid carbide tools with patent pending geometry for 3-20mm diameter product range. High productivity in difficult materials. Ideal for use in Stainless Steel, Inconel, Hastelloy, and Titanium.
Features:
- Unique combination of geometry and coating allows for use in a wide variety of applications
- Reinforced shank adds durability
- Through coolant design
Product Specifications
| # MFG | 360E04062A21M |
| Diameter (Inch) | 0.4062" |
| Diameter (mm) | 10.32mm |
| Drill Depth (Inch) | 2.835" |
| Drill Depth (mm) | 72mm |
| Overall Length (Inch) | 5.360" |
| Overall Length (mm) | 136.20mm |
| Shank Diameter (mm) | 12mm |
| Shank Length (mm) | 45mm |
| Coating | Multi-Layer TiAlN |
| Coolant | Yes |
| Flute Type | Helical |
| Grade | Carbide |
| Length Type | 6xD |
| Shank type | Cylindrical |
