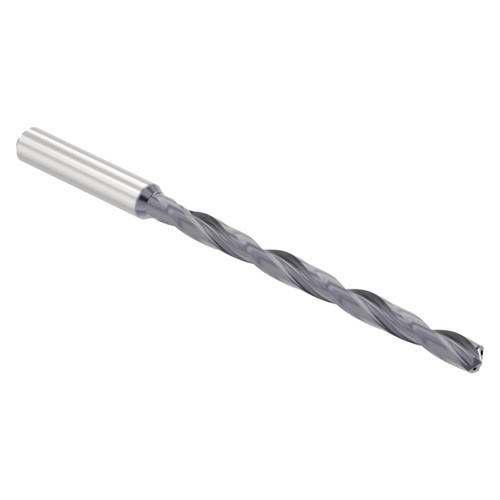

Solid carbide tools with patent pending geometry for 3-20mm diameter product range. High productivity in difficult materials. Ideal for use in Stainless Steel, Inconel, Hastelloy, and Titanium.
Features:
- Unique combination of geometry and coating allows for use in a wide variety of applications
- Reinforced shank adds durability
- Through coolant design
Product Specifications
| # MFG | 390M06000A21M |
| Diameter (Inch) | 0.2362" |
| Diameter (mm) | 6.00mm |
| Drill Depth (Inch) | 2.126" |
| Drill Depth (mm) | 54mm |
| Overall Length (Inch) | 3.980" |
| Overall Length (mm) | 101.10mm |
| Shank Diameter (mm) | 6mm |
| Shank Length (mm) | 36mm |
| Coating | Multi-Layer TiAlN |
| Coolant | Yes |
| Flute Type | Helical |
| Grade | Carbide |
| Length Type | 9xD |
| Shank type | Cylindrical |
