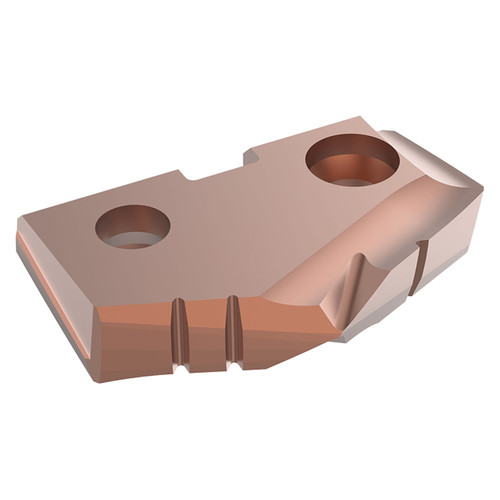

GEN2 T-A drill inserts provide lower drilling forces, increased drill stability, smoother breakout on through-hole and allows for improved chip formation.
Features:
- Notch Point geometry improves stability, hole straightness, and reduces thrust
- Web Thin reduces thrust and increases point strength, allowing greater reliability
- Helical Margin increases drill stability
- Helical Flute improves tool life
- Note: Non-stocked items are NON-RETURNABLE
Product Specifications
| # MFG | 4C12H-0100 |
| Diameter (Inch) | 1.0000" |
| Diameter Fractional Equivalent | 1" |
| Diameter (mm) | 25.40mm |
| Thickness (Inch) | 3/16" |
| Included Angle (Degree) | 132 Degree |
| Series | 2 |
| Geometry | Standard |
| Material | C1(K35) |
| Coating | AM200 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
interval quantity:
2
Ships:
From Manufacturer In 2-3 Weeks (Contact Us For Current Availability)
