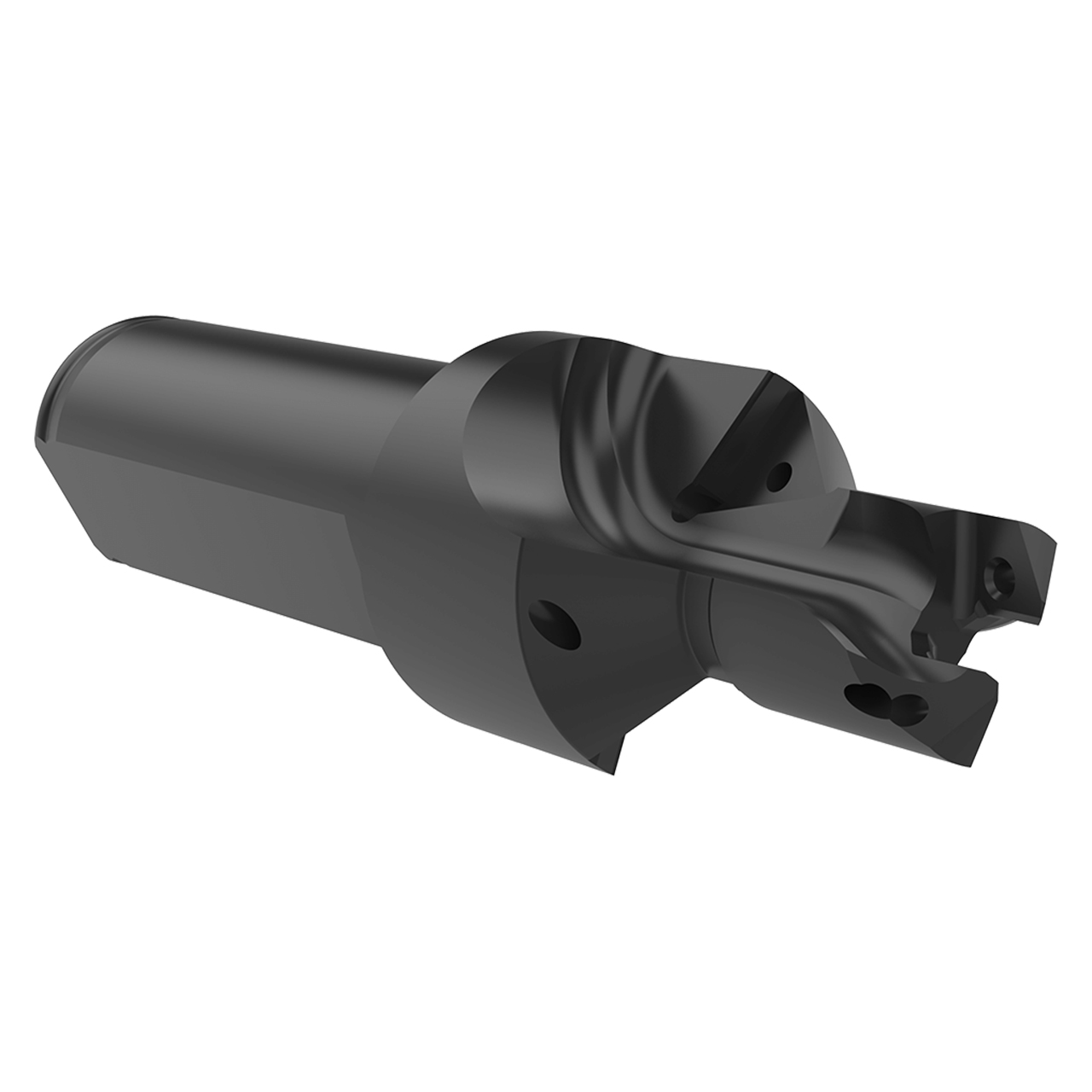

GEN3SYS drill holders penetrate up to 35% faster than competitive drilling products. Compatible with GEN3SYS and GEN3SYS XT inserts.
Features:
- The GEN3SYS high penetration holders have a highly precise locating pad for absolute repeatability and reductions in TIR
- Straight and helical flute options
- Precision-ground locating slots
- Cylindrical flanged and flanged flat shank options
Product Specifications
| # MFG | 60113C45-075F |
| Body Length (Inch) | 1-11/16" |
| Drill Depth (Inch) | 1" |
| Maximum Diameter (Decimal Inch) | 0.5511" |
| Maximum Diameter (mm) | 13.99mm |
| Minimum Diameter (Decimal Inch) | 0.5118" |
| Minimum Diameter (mm) | 13mm |
| Overall Length (Inch) | 3-23/32" |
| Series | 13 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Step Diameter (Inch) | 1-1/64" |
| Step Length (Inch) | 49/64" |
| Tool Reference Length (Inch) | 1-25/32" |
| Length Type | 1xD |
| Coolant Inlet Style Rear | TSC |
| Flat | Yes |
| Flute Type | Straight |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Maximum Drill Diameter (Inch):
35/64"
Maximum Drill Diameter (Decimal Inch):
0.5511"
Maximum Drill Diameter (mm):
13.99mm
Minimum Drill Diameter (Inch):
33/64"
Minimum Drill Diameter (Decimal Inch):
0.5118"
Minimum Drill Diameter (mm):
13.00mm
Body Shank Diameter (Inch):
3/4"
Body Shank Diameter (Decimal Inch):
0.7500"
Body Shank Diameter (mm):
19.05mm
Drill Shank Diameter (Inch):
1"
Drill Shank Diameter (Decimal Inch):
1.0000"
Drill Shank Diameter (mm):
25.40mm
