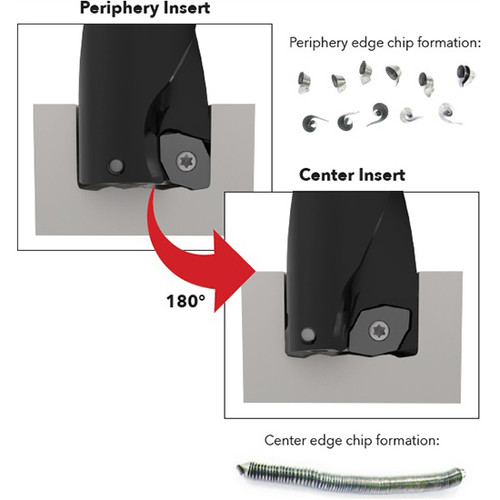

The 4TEX indexable carbide drill provides increased penetration rates on light duty machines due to the single effective design. With twisted coolant outlets and increased core strength, the design provides improved hole size and finish. The four-sided 4TEX inserts are designed to use two sides in the center pocket and two sides in the periphery pocket for an improved cost per hole.
Features:

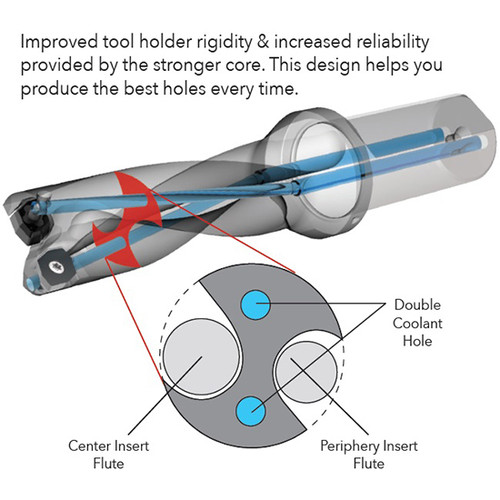

- Stronger core
- Two twisted coolant holes
- Increased coolant volume
- Four-sided insert design
- Insert geometries specific for ISO materials
- Single effective cutting
Product Specifications
| # MFG | D2092700M-125F |
| Assembled Overall Length (Inch) | 5.343" |
| Cutter Diameter (mm) | 27mm |
| Depth to Diameter | 2XD |
| Drill Depth (Inch) | 2.126" |
| Drill Depth (mm) | 54mm |
| Flange Diameter (Inch) | 1.614" |
| Gage Length (Inch) | 3.02" |
| Series | 09 |
| Shank Diameter (Inch) | 1.25" |
| Shank Diameter (mm) | 31.75mm |
| Shank Type | Flanged |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Benefits
- Superior chip evacuation - provided by the 2 twisted coolant holes
- Improved hole size - from the stronger core and increased coolant volume
- Save money with longer tool life - provided by the 4-sided insert design
- Increased penetration rates - due to single effective cutting on light duty machines
- Simplified tooling selection - with ISO-specific insert geometry/coating combinations
