The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- T-A Pro inserts can be used with the previous T-A insert holders

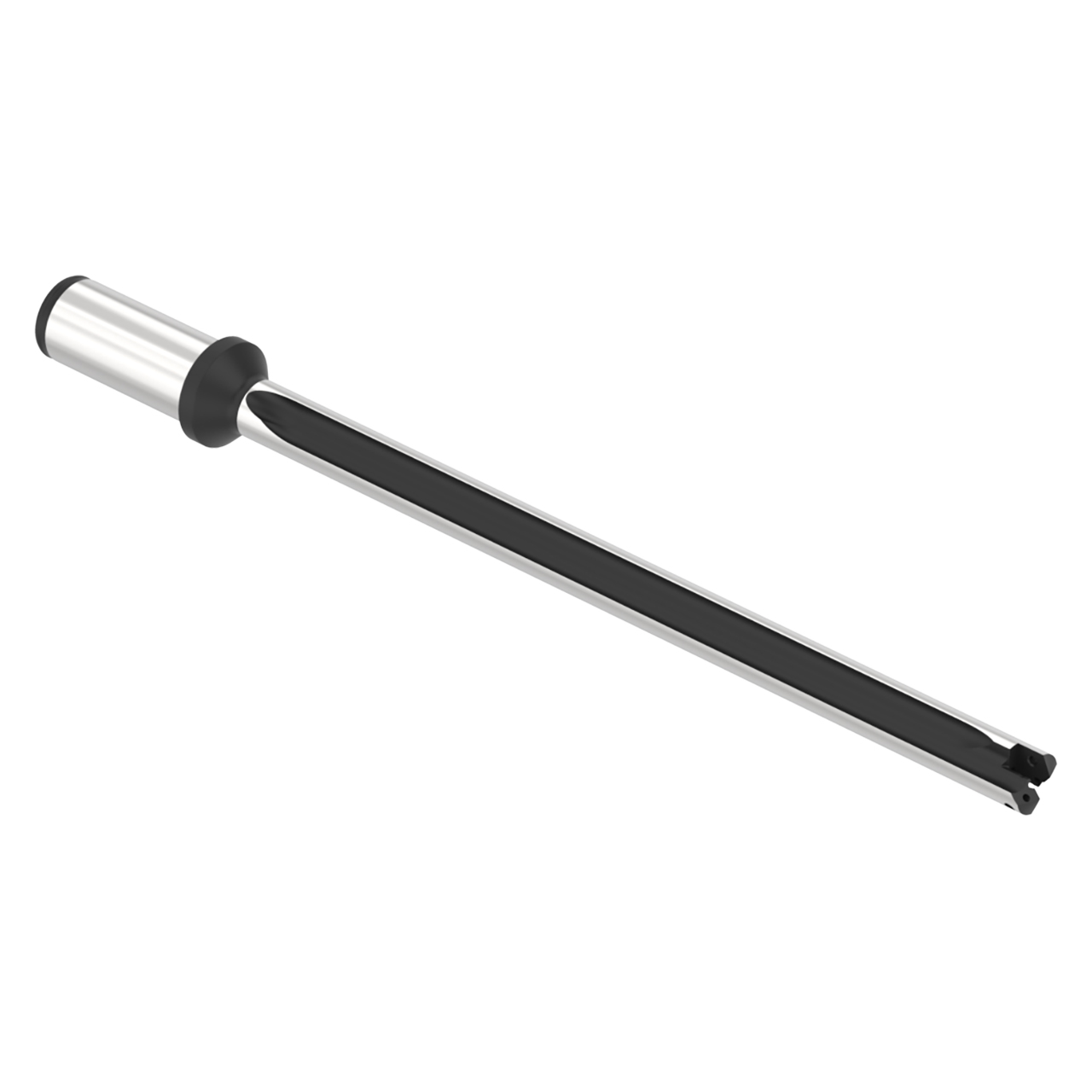

Product Specifications
| # MFG | HTA1A12-100C |
| Body Length (Decimal Inch) | 11.398" |
| Drill Depth (Decimal Inch) | 9.9" |
| Flute Type | Straight |
| Length Type | 12XD |
| Maximum Diameter (Decimal Inch) | 0.960" |
| Minimum Diameter (Decimal Inch) | 0.696" |
| Overall Length (Decimal Inch) | 13.678" |
| Series | 1 |
| Shank Diameter (Inch) | 1.000" |
| Shank Length (Decimal Inch) | 2.28" |
| Shank Type | Cylindrical |
