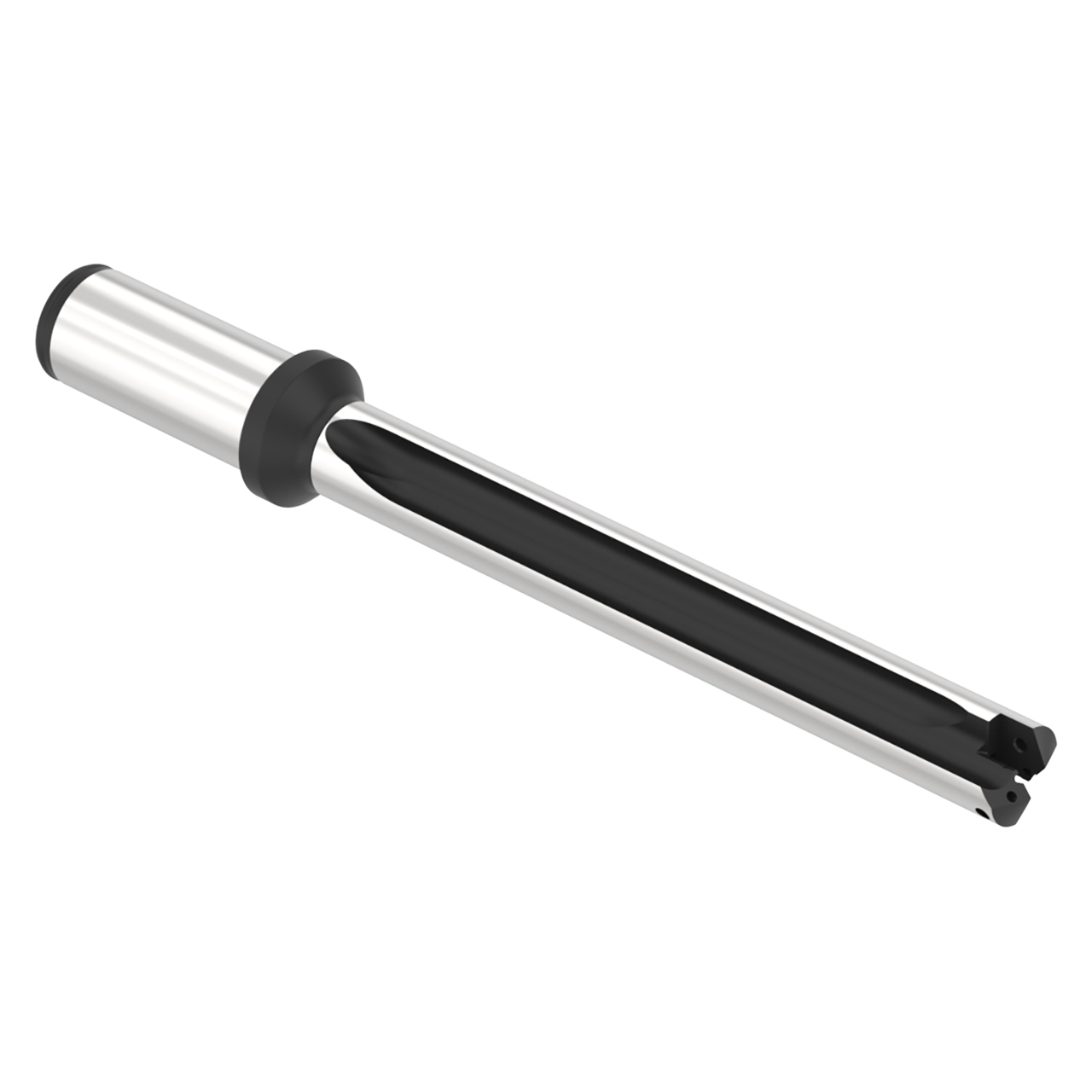

The T-A Pro is the culmination of years of application wins and losses, taking what was typically known as a general purpose tool and making it the go-to for all applications, providing a wider range and better cost per hole than competitive high performance tools.
Features:
- The advanced T-A Pro insert combines a coating and geometry specifically designed to achieve optimal results in ISO material drilling applications
- T-A Pro inserts can be used with the previous T-A insert holders
Product Specifications
| # MFG | HTA1C07-100C |
| Body Length (Decimal Inch) | 7.273" |
| Drill Depth (Decimal Inch) | 5.775" |
| Flute Type | Straight |
| Length Type | 7XD |
| Maximum Diameter (Decimal Inch) | 0.960" |
| Minimum Diameter (Decimal Inch) | 0.81" |
| Overall Length (Decimal Inch) | 9.553" |
| Series | 1 |
| Shank Diameter (Inch) | 1.000" |
| Shank Length (Decimal Inch) | 2.28" |
| Shank Type | Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Series:
1
Shank Type:
CYLINDRICAL
Shank Diameter (Inch):
1"
Overall Length (Inch):
9-35/64"
Overall Length (Decimal Inch):
9.55300"
Maximum Drill Depth (Inch):
5-25/32"
Maximum Drill Depth (Decimal Inch):
5.7750"
Flute Type:
Straight
interval quantity:
1
