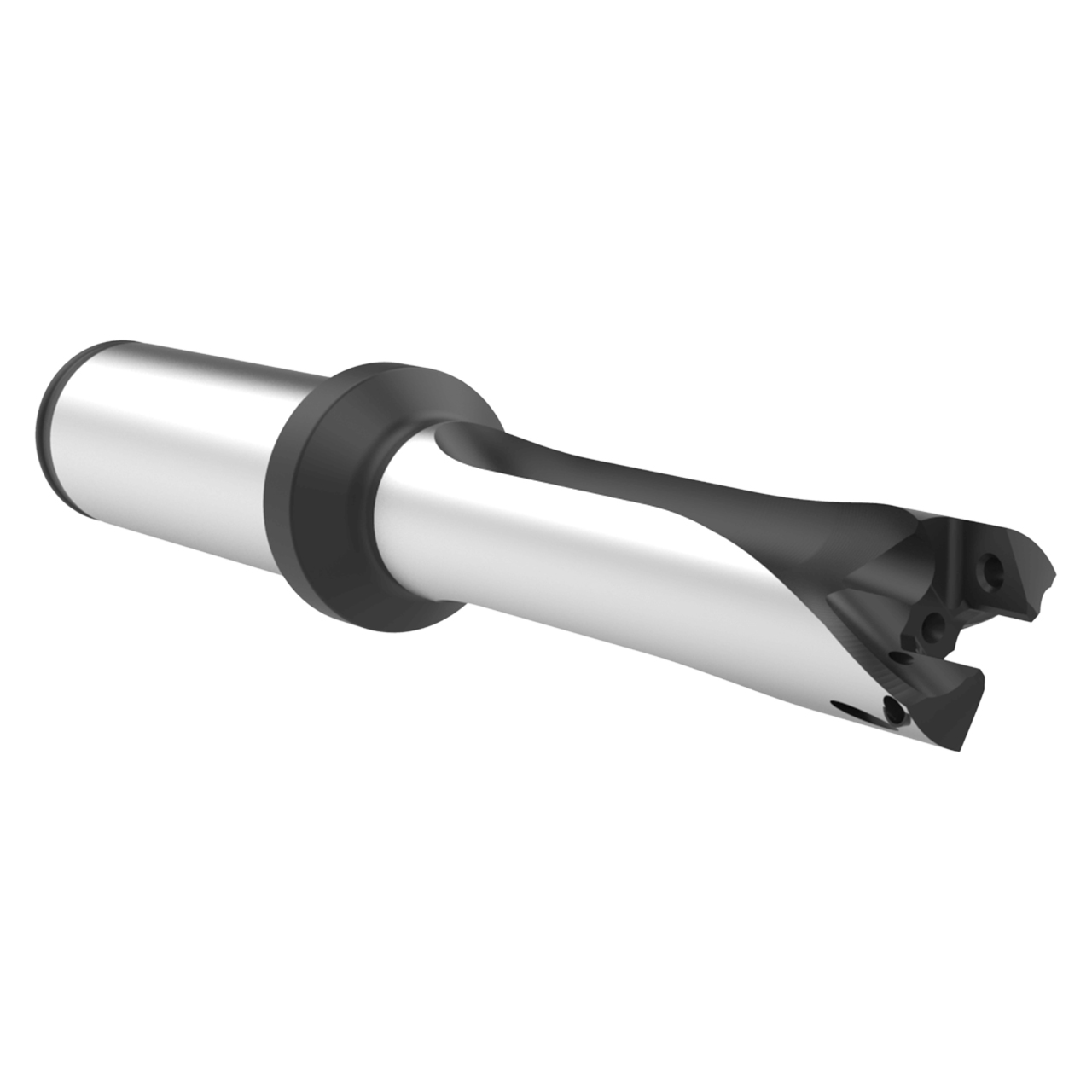

The XT Pro holders have been redesigned to provide enhanced productivity and increased effectiveness of the XT Pro inserts.
Features:
- The XT Pro holder features an increased flute area for chip evacuation
- The holder also has additional coolant to the cutting zone to increase insert life and drill stability
Product Specifications
| # MFG | HXT0316S-075C |
| Body Length (Inch) | 3.2" |
| Coolant Inlet Style Rear | TSC |
| Deep Hole | No |
| Drill Depth (Inch) | 2-1/64" |
| Flat | No |
| Length Type | 3xD |
| Maximum Diameter (Inch) | 0.6692" |
| Maximum Diameter (mm) | 16.99mm |
| Minimum Diameter (Inch) | 0.6299" |
| Minimum Diameter (mm) | 16mm |
| Overall Length (Inch) | 5 - 1132" |
| Series | 16 |
| Shank Diameter (Inch) | 3/4" |
| Shank Length (Inch) | 2-1/32" |
| Shank type | Flanged |
| Tool Reference Length (Decimal Inch) | 3-5/16" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
