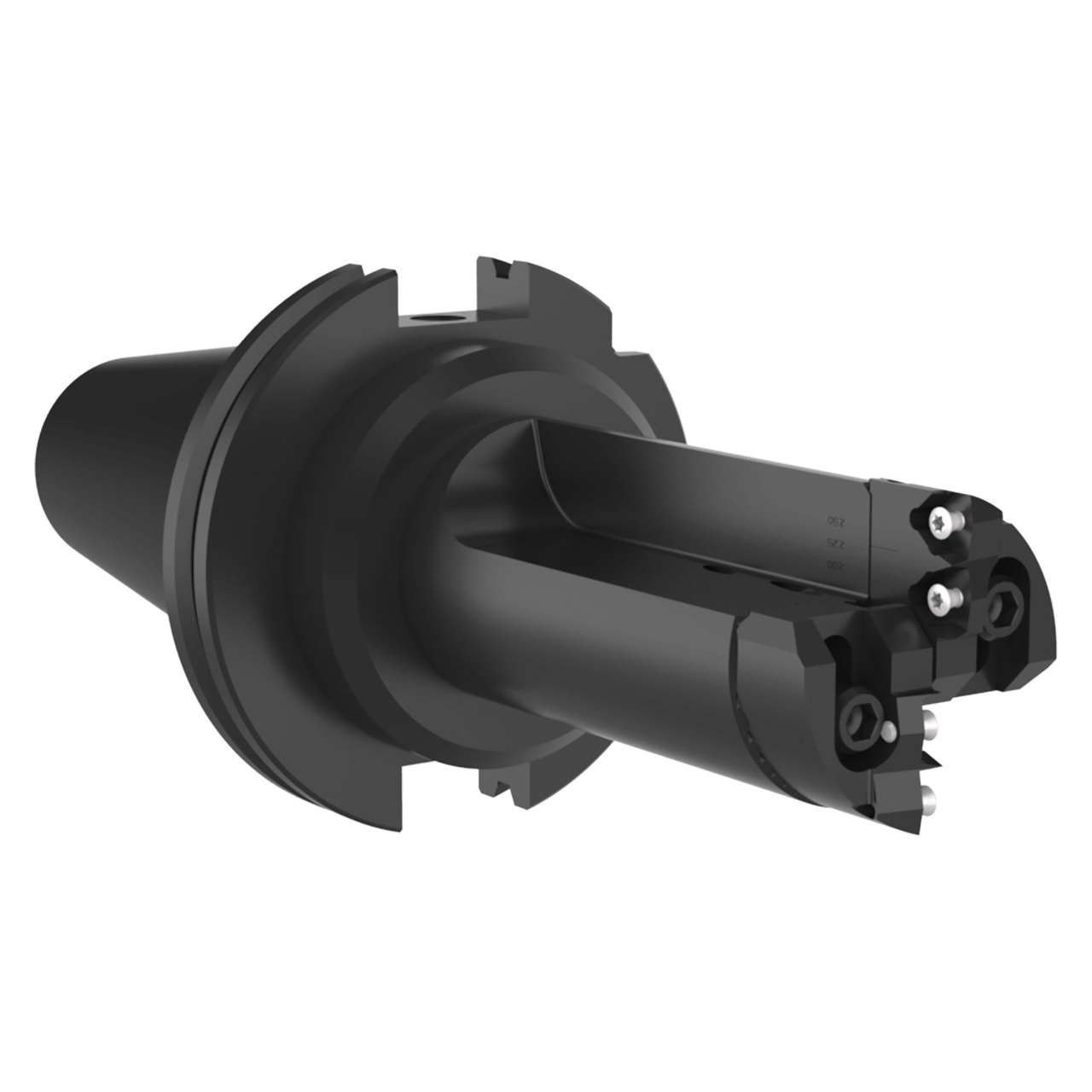

The Opening Drill is an extremely effective tool designed to enlarge existing holes.
Features:
- Cartridges can be easily replaced to protect the drill body investment
- Replaceable cartridges mean less downtime in the event of a tool crash
- Cartridges use the same insert in all pockets lowering inventory levels
- Note: Non-stocked items are NON-RETURNABLE
Product Specifications
| # MFG | OP1-1S-DV50 |
| Drill Depth (mm) | 83.50mm |
| Drill Depth (Inch) | 24.27" |
| Gage Length (mm) | 137.9mm |
| Maximum Diameter (mm) | 63.50mm |
| Minimum Diameter (mm) | 50.80mm |
| Quantity of Inserts | 4 |
| Shank Type | DV 50 |
| Flute Type | Straight |
| Length Type | Short |
| Series | OP1 |
| Insert Prefix | OP-05T308 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Diameter (Inch):
2"
Drill Diameter (Decimal Inch):
2.0000"
Drill Diameter (mm):
50.80mm
Maximum Drill Depth (Inch):
3-9/32"
Maximum Drill Depth (Decimal Inch):
3.2900"
Maximum Drill Depth (mm):
83.50mm
Shank Type:
DV 50
Through Coolant:
Yes
interval quantity:
1
