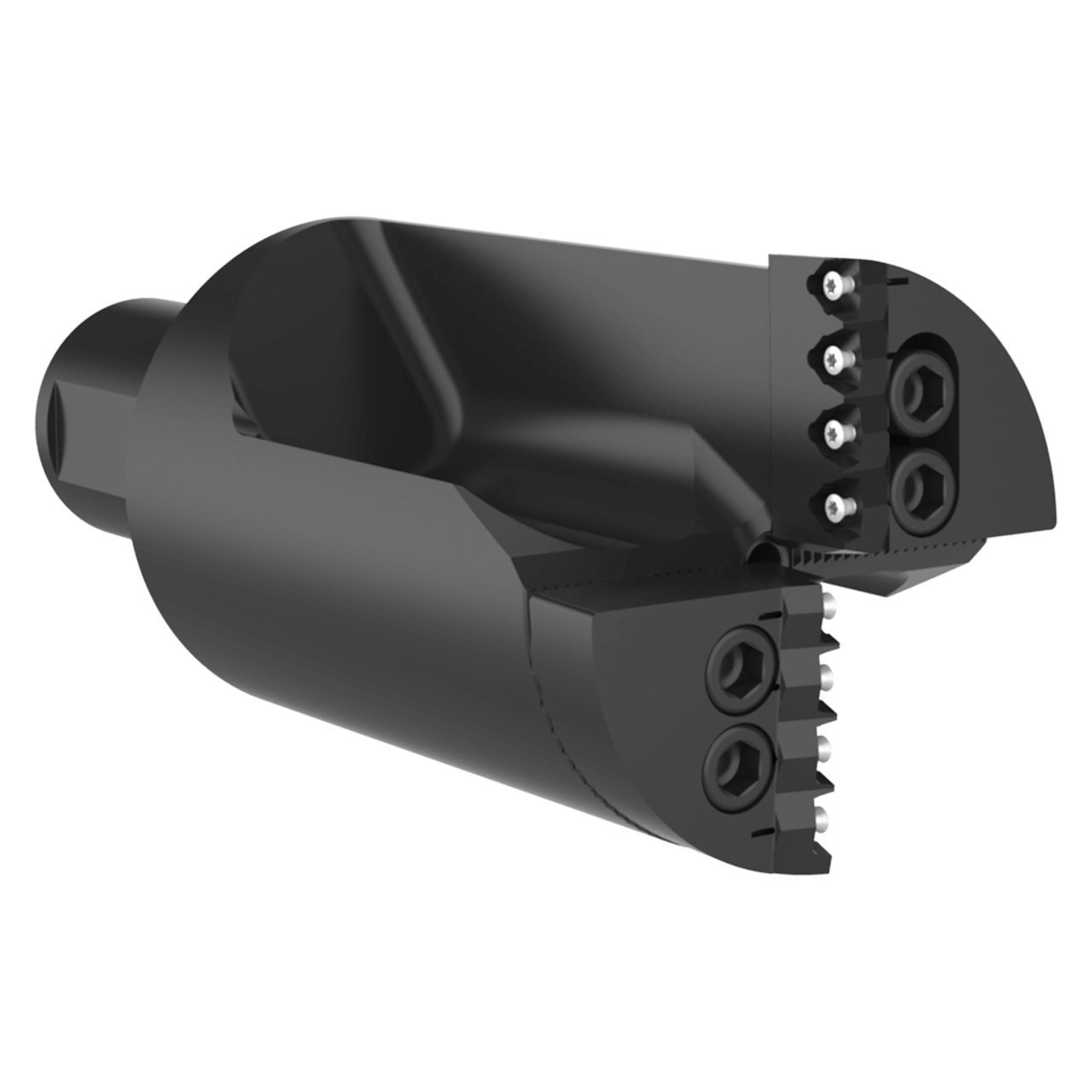

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
- Drills from solid-no pilot required
- Adjustable up to 0.200" (5mm) on diameter
- Replaceable cartridges provide re-buildable function
Product Specifications
| # MFG | R58X10-50M |
| Drill depth (mm) | 98.60mm |
| Maximum Diameter (mm) | 101.6mm |
| Minimum Diameter (mm) | 96.5mm |
| Shank Diameter (mm) | 50.00mm |
| Length Type | 1.0 X D |
| Overall Length (mm) | 226.2mm |
| Series | R58 |
| Quantity of Inserts | 8 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | Straight |
