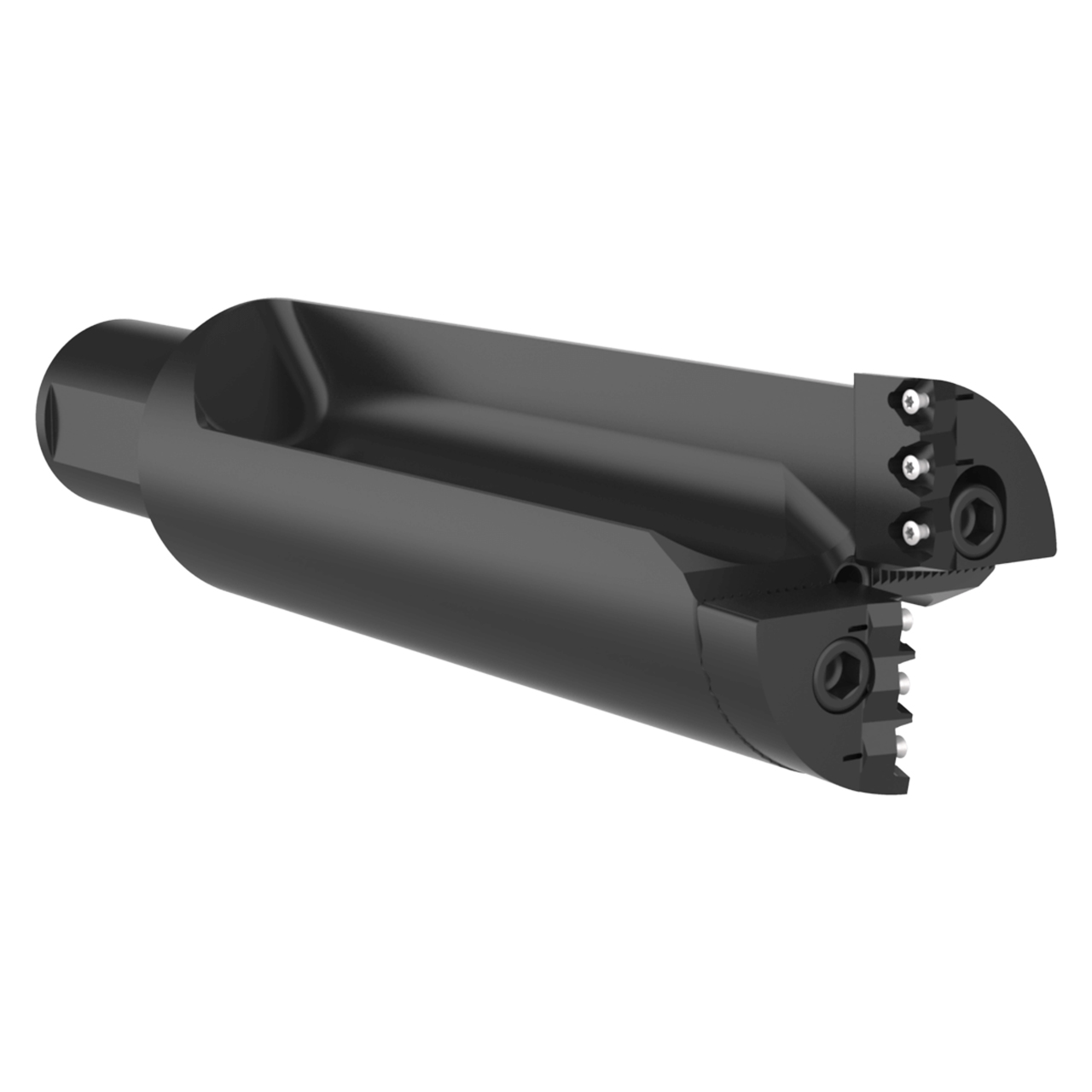

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.
Features:
- Drills from solid-no pilot required
- Adjustable up to 0.200" (5mm) on diameter
- Replaceable cartridges provide re-buildable function
Product Specifications
| # MFG | SP48X25-50M |
| Drill depth (mm) | 202.90mm |
| Maximum Diameter (mm) | 81.3mm |
| Minimum Diameter (mm) | 76.2mm |
| Shank Diameter (mm) | 50.00mm |
| Length Type | 2.5 X D |
| Overall Length (mm) | 317.2mm |
| Series | R48 |
| Quantity of Inserts | 4 |
| Coolant | Yes |
| Flute Type | Straight |
| Shank type | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Drill Style:
R48
Drill Diameter (Inch):
3-13/64"
Drill Diameter (Decimal Inch):
3.2000"
Drill Diameter (mm):
81.30mm
Maximum Drill Depth (Inch):
7-63/64"
Maximum Drill Depth (Decimal Inch):
7.9882"
Maximum Drill Depth (mm):
202.90mm
Shank Type:
Straight
Shank Diameter (Inch):
1-31/32"
Shank Diameter (Decimal Inch):
1.9685"
Shank Diameter (mm):
50.00mm
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.5 X D
interval quantity:
1
