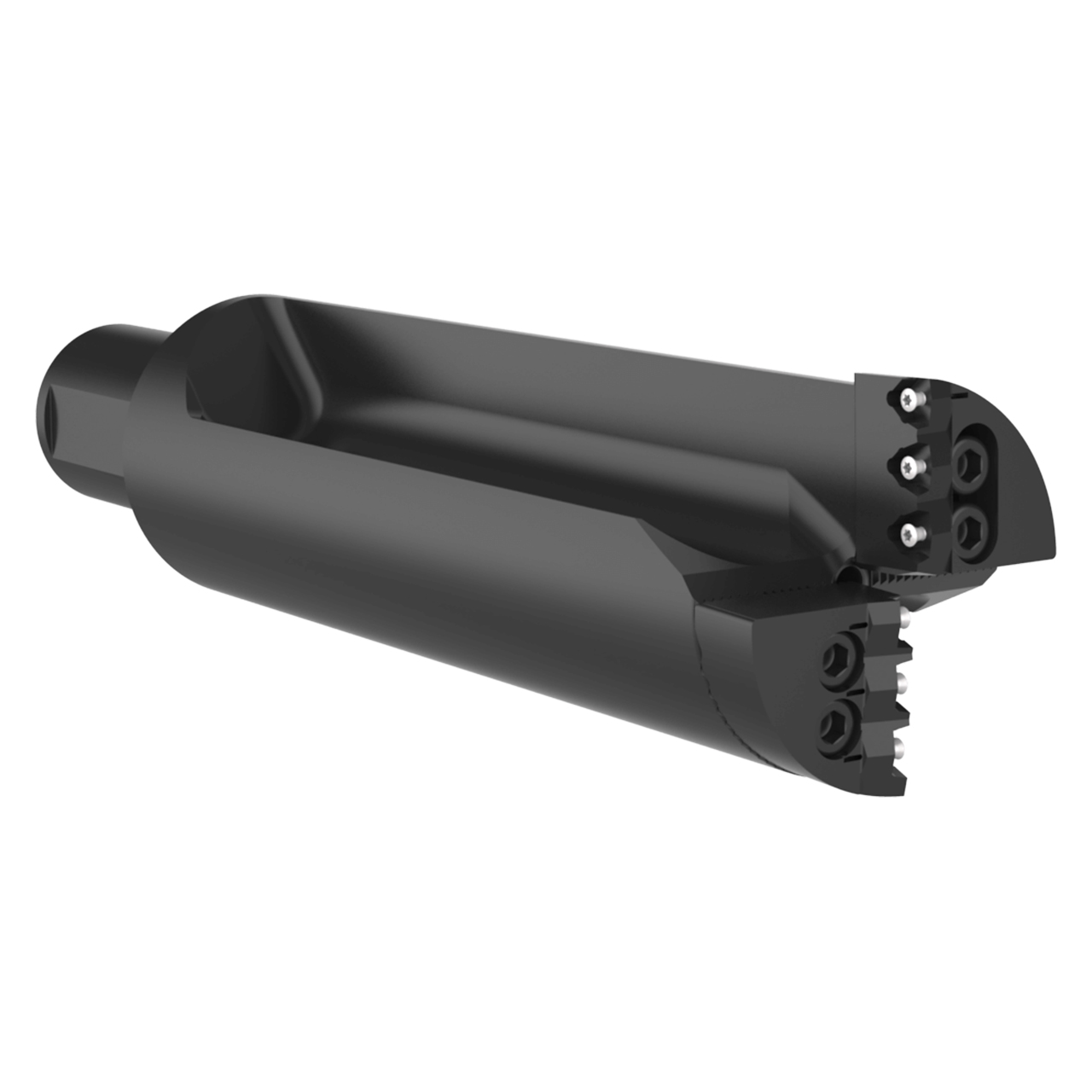

Allied Machine and Engineering SP52X25-50M | 215.60mm Depth x 86.40mm Diameter x 50.00mm Shank x 2.5XD Length R52 Series Indexable Insert Drill

$1,278.00 $1,214.10
(You save $63.90)
Brand:
Allied Machine and Engineering
Drill Style:
R52
Drill Diameter (Inch):
3-13/32"
Drill Diameter (Decimal Inch):
3.4000"
Drill Diameter (mm):
86.40mm
Maximum Drill Depth (Inch):
8-31/64"
Maximum Drill Depth (Decimal Inch):
8.4882"
Maximum Drill Depth (mm):
215.60mm
Shank Type:
Straight
Through Coolant:
Yes
Drill Depth by Diameter Ratio:
2.5 X D
interval quantity:
1
SKU:
23036810
UPC:
Weight:
15.82 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

The Revolution Drill has an innovative design that allows for adjustability of 0.200" (5.1mm) on diameter, eliminating the need for specials and/or subsequent boring operations.

Features:

  • Drills from solid-no pilot required
  • Adjustable up to 0.200" (5mm) on diameter
  • Replaceable cartridges provide re-buildable function

Product Specifications
# MFGSP52X25-50M
Drill depth (mm)215.60mm
Maximum Diameter (mm)86.4mm
Minimum Diameter (mm)81.3mm
Shank Diameter (mm)50.00mm
Length Type2.5 X D
Overall Length (mm)336.1mm
SeriesR52
Quantity of Inserts4
CoolantYes
Flute TypeStraight
Shank typeStraight

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
