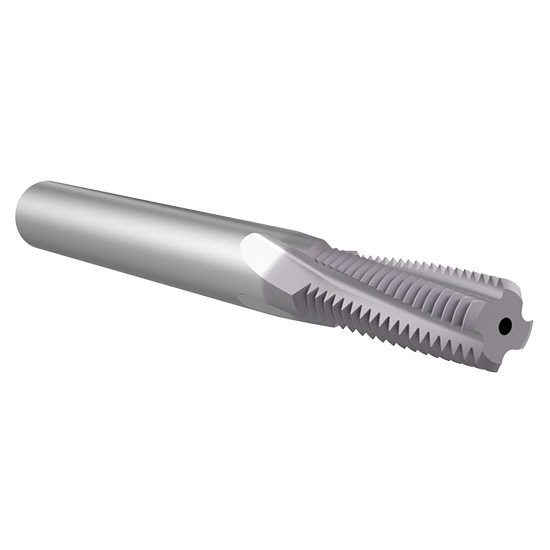

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 1
- Thread Form : ISO
Product Specifications
| #MFG | TM12100CHM |
| Thread Size (mm) | M12 |
| Cutter Diameter (Inch) | 3/8" |
| Cutter Diameter (Decimal Inch) | 0.3701" |
| Cutter Diameter (mm) | 9.14mm |
| Pitch (Inch) | 3/64" |
| Pitch (Decimal Inch) | 0.0400" |
| Pitch (mm) | 1.00mm |
| Shank Diameter (Inch) | 25/64" |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Inch) | 25/32" |
| Length of Cut (Decimal Inch) | 0.7874" |
| Length of Cut (mm) | 20.00mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (mm):
M12
Thread Type:
Internal/External
Pitch (Inch):
3/64"
Pitch (Decimal Inch):
0.0400"
Pitch (mm):
1.00mm
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3701"
Cutter Diameter (mm):
9.14mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Number of Flutes:
4
Length of Cut (Inch):
25/32"
Length of Cut (Decimal Inch):
0.7874"
Length of Cut (mm):
20.00mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant (yes/no):
Yes
