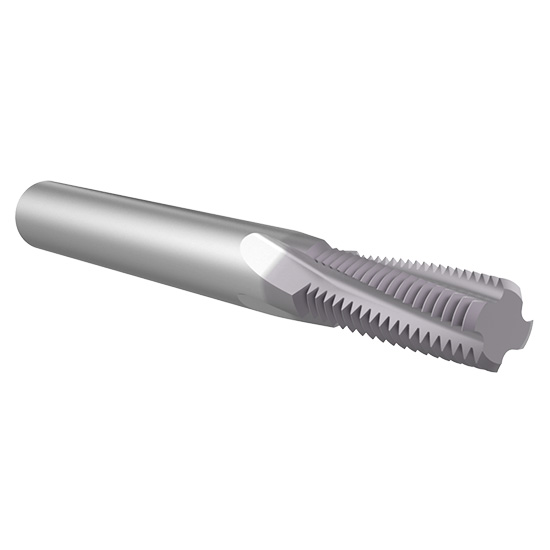

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 18
- Thread Form : NPSF
Product Specifications
| #MFG | TM18NPSF |
| Thread Size (Inch) | 1/4" and 3/8" |
| Thread Size (Decimal Inch) | 0.2500" and 0.3750" |
| Thread Size (mm) | 6.35mm and 9.53mm |
| Cutter Diameter (Inch) | 3/8" |
| Cutter Diameter (Decimal Inch) | 0.3700" |
| Cutter Diameter (mm) | 9.40mm |
| Pitch (Inch) | 45/64" |
| Pitch (Decimal Inch) | 0.7100" |
| Pitch (mm) | 18.00mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 57/64" |
| Length of Cut (Decimal Inch) | 0.8890" |
| Length of Cut (mm) | 22.58mm |

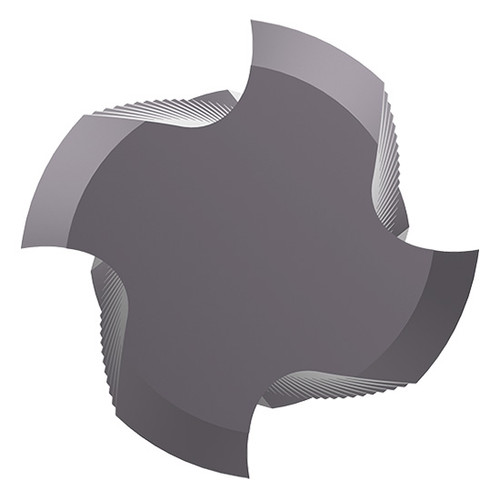

| Number of Flutes | 4 |
| Thread Type | Internal |
| Finish/Coating | TiAIN |
| Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (mm):
6.35mm and 9.53mm
Thread Type:
Internal
Pitch (Inch):
45/64"
Pitch (Decimal Inch):
0.7100"
Pitch (mm):
18.00mm
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3700"
Cutter Diameter (mm):
9.40mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
57/64"
Length of Cut (Decimal Inch):
0.8890"
Length of Cut (mm):
22.58mm
Finish/Coating:
TiAIN
Material:
Carbide
