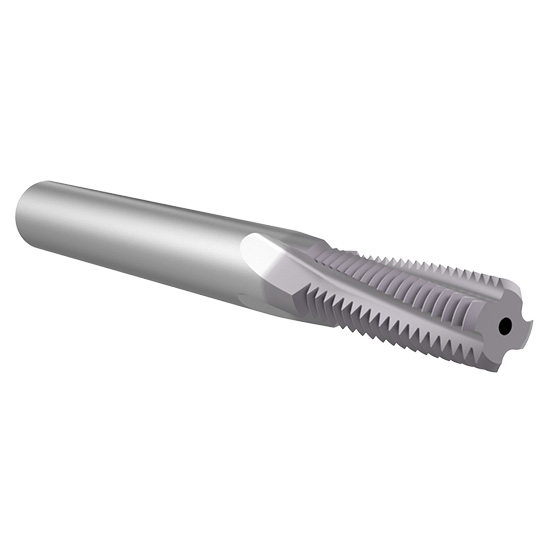

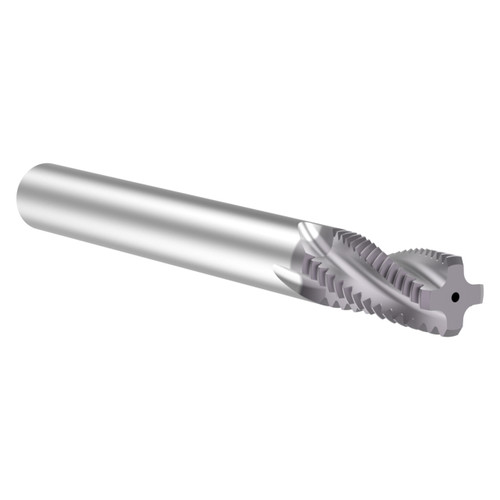

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 19
- Thread Form : BSPP
Product Specifications
| #MFG | TM19BSPPCH |
| Thread Size (Inch) | 1/4" and 3/8" |
| Thread Size (Decimal Inch) | 0.2500" and 0.3750" |
| Thread Size (mm) | 6.35mm and 9.53mm |
| Cutter Diameter (Inch) | 5/16" |
| Cutter Diameter (Decimal Inch) | 0.3100" |
| Cutter Diameter (mm) | 7.87mm |
| Pitch (Inch) | 3/4" |
| Pitch (Decimal Inch) | 0.7500" |
| Pitch (mm) | 19.00mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3120" |
| Shank Diameter (mm) | 7.92mm |
| Length of Cut (Inch) | 47/64" |
| Length of Cut (Decimal Inch) | 0.7370" |
| Length of Cut (mm) | 18.72mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAlN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (mm):
6.35mm and 9.53mm
Thread Type:
Internal/External
Pitch (Inch):
3/4"
Pitch (Decimal Inch):
0.7500"
Pitch (mm):
19.00mm
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3100"
Cutter Diameter (mm):
7.87mm
Finish/Coating:
TiAlN
Material:
Carbide
Through Coolant:
Yes
interval quantity:
1
