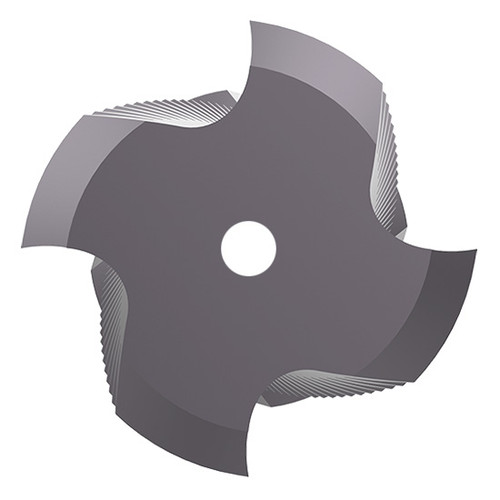

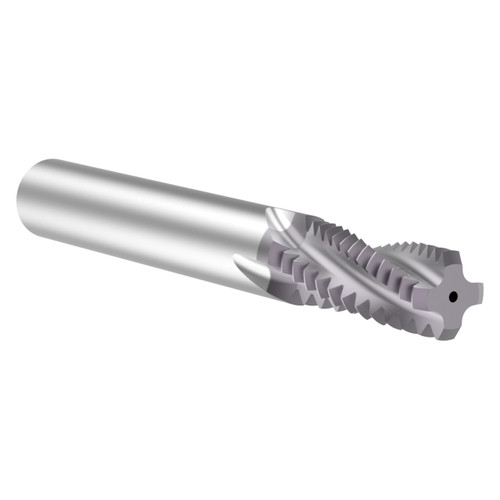

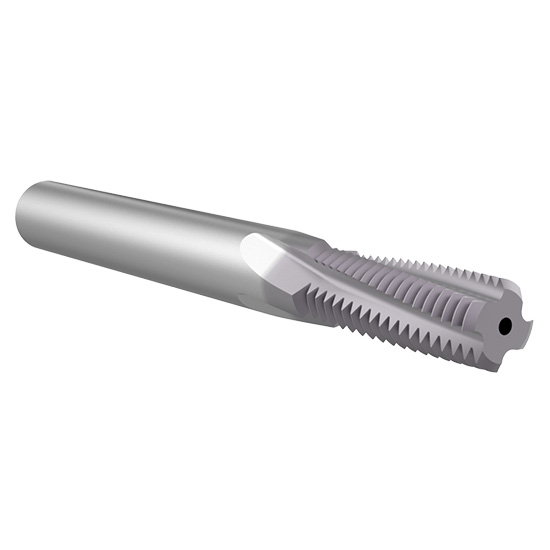

The threadmill range is manufactured from solid carbide with ground helical flutes and a TiAlN coating as standard. These products have been designed for the low volume/low cost production environment, providing excellent performance at a competitive price.
Features:
- Full product offering of UN,NPT,NPTF, and METRIC tools
- TiAlN coated for increased tool life over uncoated tools
- Extensive range of thread forms
- Coolant through
- Thread Per Inch : 13
- Thread Form : UN
Product Specifications
| #MFG | TM50013CH |
| Thread Size (Inch) | 1/2" |
| Thread Size (Decimal Inch) | 0.5000" |
| Thread Size (mm) | 12.70mm |
| Cutter Diameter (Inch) | 11/32" |
| Cutter Diameter (Decimal Inch) | 0.3500" |
| Cutter Diameter (mm) | 8.89mm |
| Pitch (Inch) | 33/64" |
| Pitch (Decimal Inch) | 0.5100" |
| Pitch (mm) | 13.00mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 25/32" |
| Length of Cut (Decimal Inch) | 0.8750" |
| Length of Cut (mm) | 22.23mm |
| Number of Flutes | 4 |
| Thread Type | Internal/External |
| Finish/Coating | TiAIN |
| Material | Carbide |
| Through Coolant (yes/no) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Thread Size (Inch):
1/2"
Thread Size (Decimal Inch):
0.5000"
Thread Size (mm):
12.70mm
Thread Type:
Internal/External
Pitch (Inch):
33/64"
Pitch (Decimal Inch):
0.5100"
Pitch (mm):
13.00mm
Cutter Diameter (Inch):
11/32"
Cutter Diameter (Decimal Inch):
0.3500"
Cutter Diameter (mm):
8.89mm
Finish/Coating:
TiAIN
Material:
Carbide
Through Coolant:
Yes
