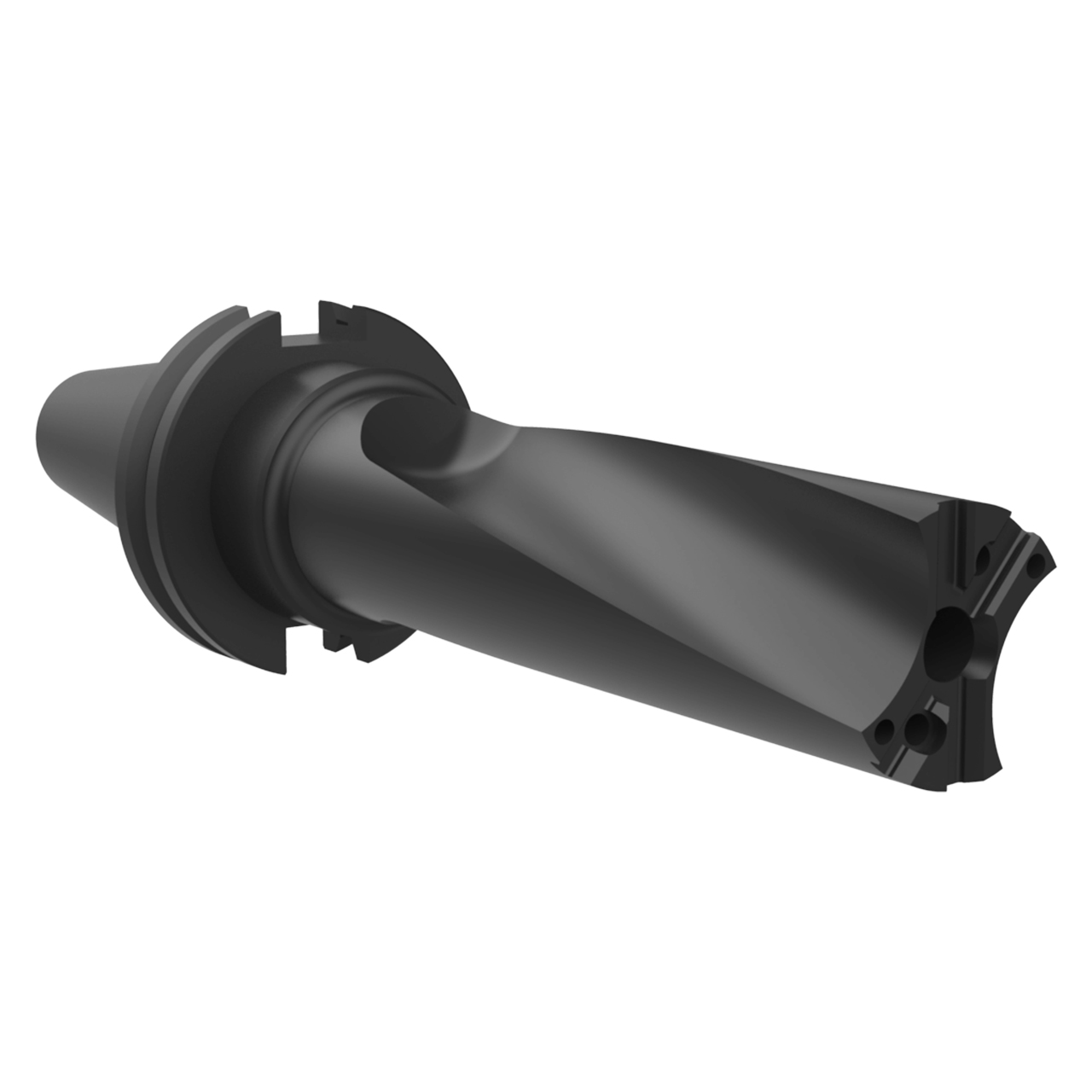

Allied's APX drilling system is a modular tool designed for depths beyond the range of a traditional IC drill. The tool uses a fixed series body, with various heads that determine the cutting diameter.
Features:
- Allows for higher Spindle speeds and takes advantage of the power curve on modern CNC machines for maximum penetration rates on deep holes
- A unique "X" locator on the Head to body connection allows for simple assembly and superior strength
Product Specifications
| # MFG | W3803H-CV40 |
| Assembled Overall Length (Inch) | 11" |
| Assembled Reference Length (Inch) | 8-5/16" |
| Assembled Reference Length (mm) | 196.5mm |
| Drill Depth (Inch) | 5-1/8" |
| Maximum Diameter (Inch) | 1.7322" |
| Minimum Diameter (mm) | 38.00mm |
| Series | 38 |
| Shank Type | CV 40 |
| Length Type | 3xØ |
| Coolant Inlet Style Rear | Through the Shank |
| Flute Type | Helical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Allied Machine and Engineering
Maximum Diameter (Decimal Inch):
1.7322"
Minimum Diameter (mm):
38.00mm
Flute Type:
Helical
Shank Type:
CV 40
