Tapped-Heel Clamp Strap Assembly
Heavy-duty steel version of the Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp.
Application Information
Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw.

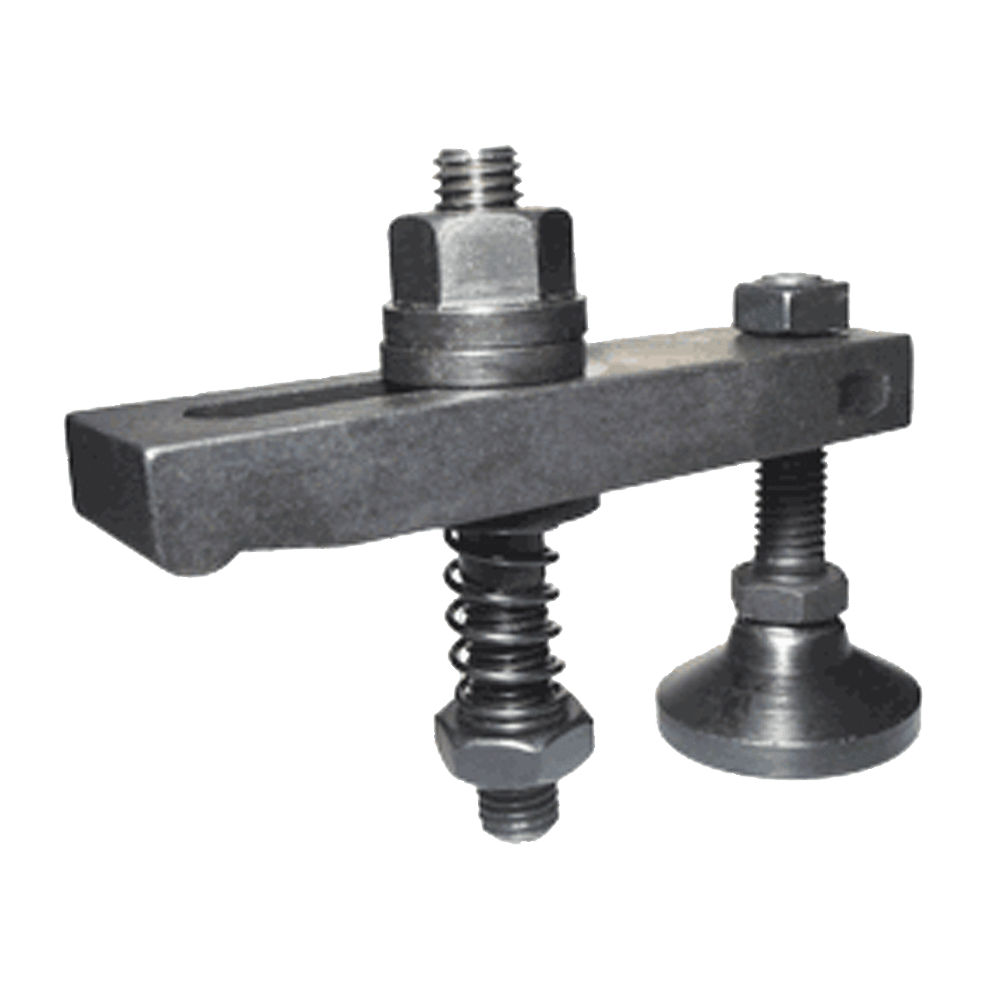

Assembly with Leveling Foot (-LF)
This assembly includes a Tapped-Heel Clamp Strap plus the following Items:
- Stud Leveling Foot
- Spherical Nut & Washer
- Clamping Stud
- Clamp Spring
- Flat Washer
- Jam Nut
Material
Material | Heat Treat | Finish | DFARS | RoHS |
1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
Parts Specification
Stud Thread (Inch) | A (Inch) | B (Inch) | C (Inch) | L (Inch) |
1/4-20" | 2" | 5/8" | 3/8" | 13/16" |
