Hand Wheels-Solid Square Design
High-quality, stainless steel Hand Wheel with a modern square design. Completely machined to a fine Finish from solid 300-series stainless steel. This precision Hand Wheel is extremely strong, yet light weight.
Application Information

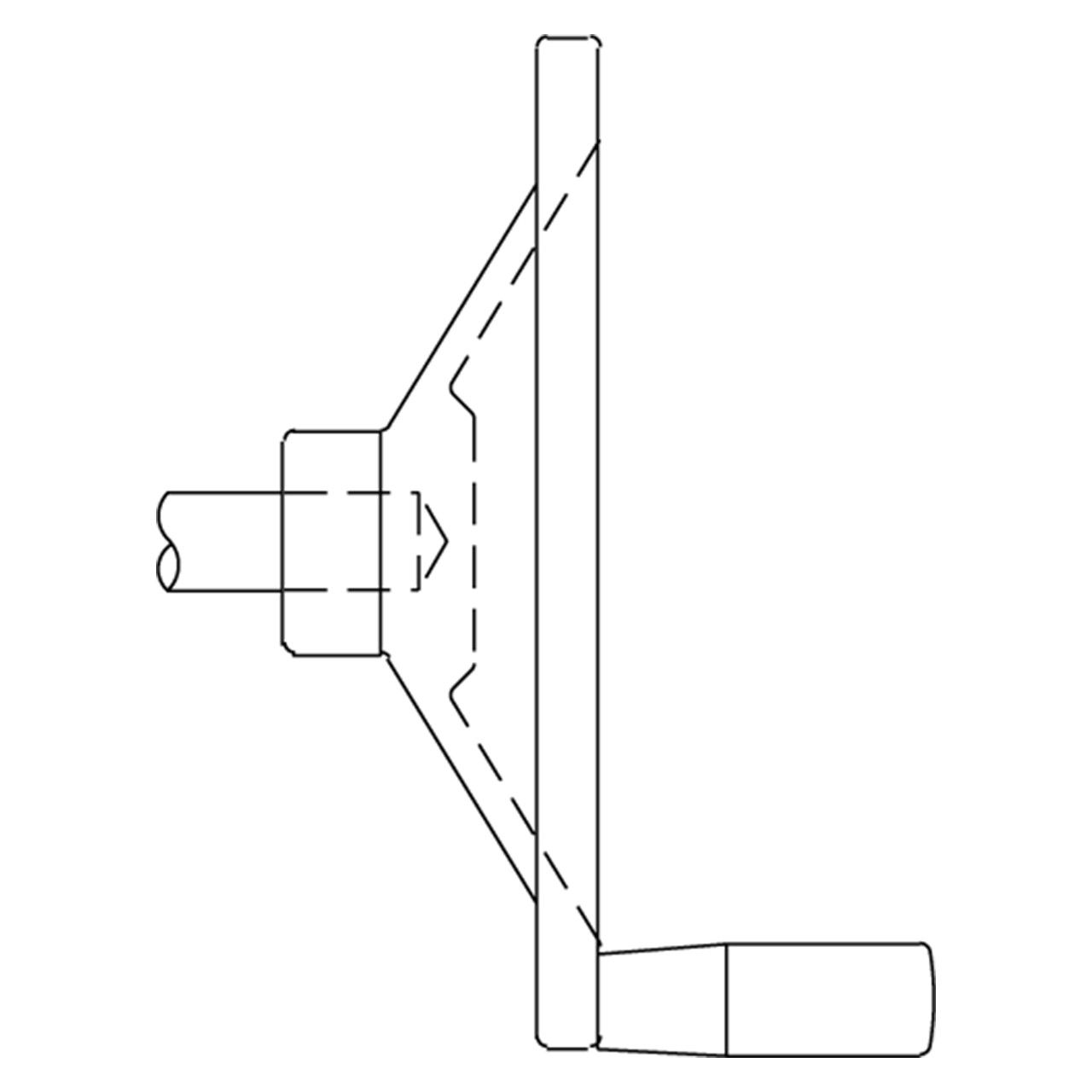

These Hand Wheels can be bored with a blind hole, to hide the shaft, for an extremely attractive Finished appearance.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | Yes | Yes | Yes | Yes |

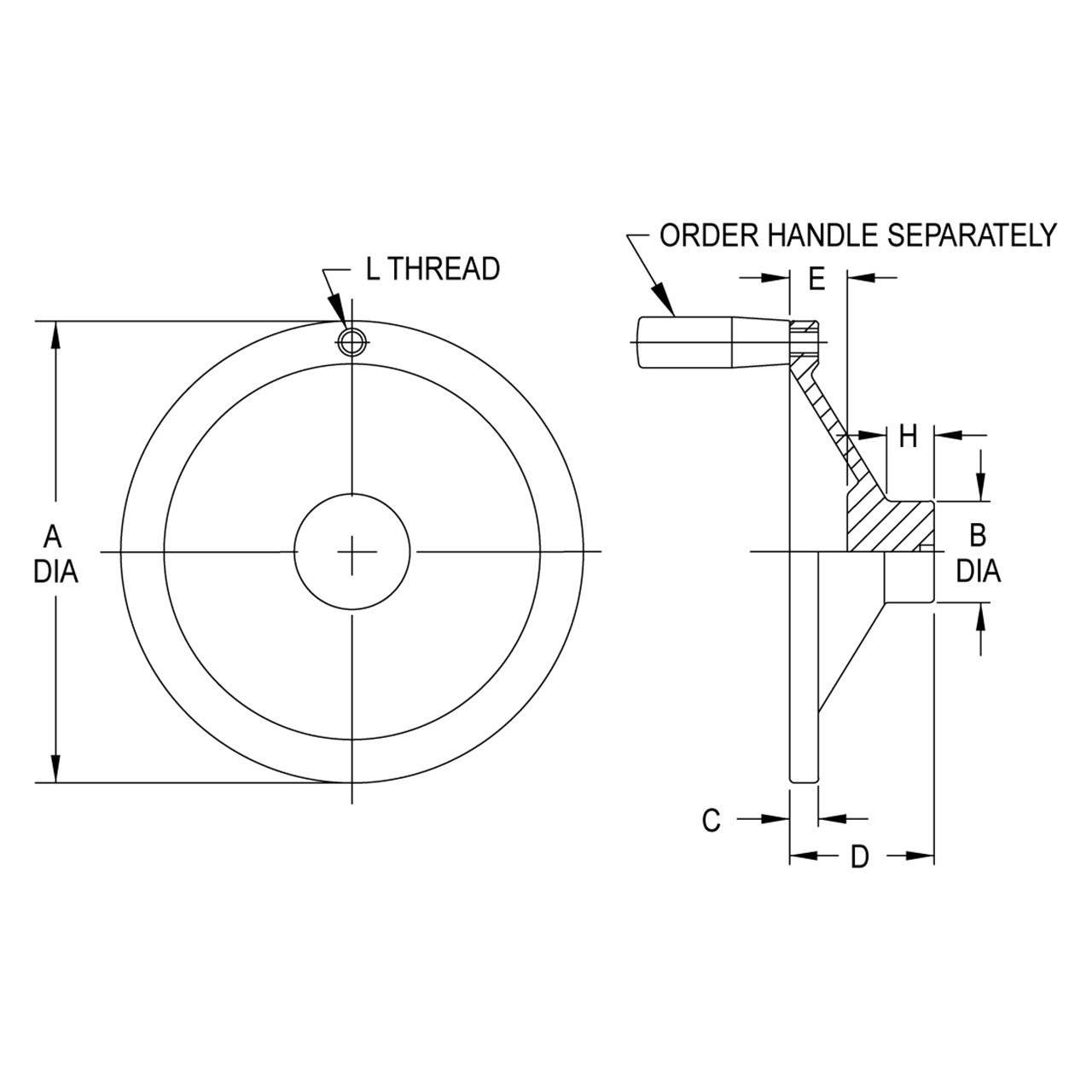

Parts Specification
| A Diameter | B Diameter (Inch) | C (Inch) | D (Inch) | E (Inch) | H (Inch) | L Thread | Matching Handle Size | |
| 10 | 2.00" | 5/8" | 2.00" | 0.95" | 3/4" | 3/8-16 | Size 4 |
