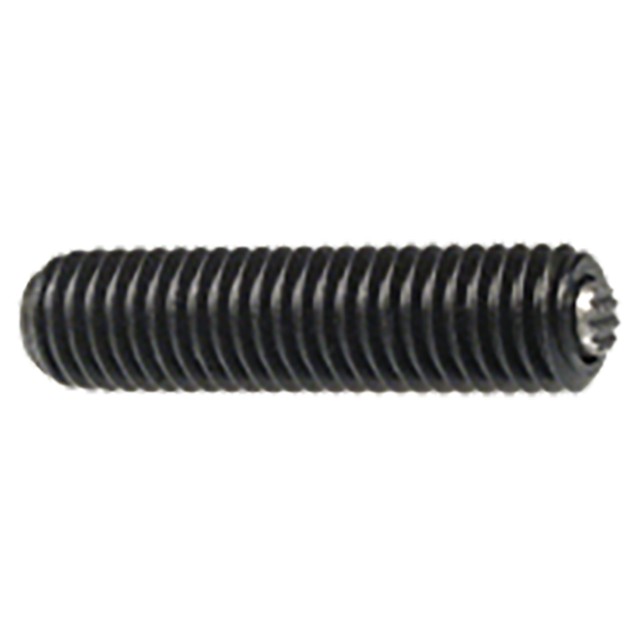

Gripper Swivel Screws
Screw clamp with a serrated, hardened tool steel swivel ball. Serrated grippers are designed to slightly penetrate the workpiece to significantly increase gripping force, rather than relying on static friction alone. A positive stop prevents the ball from swiveling too far. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Swivel Ball | High-speed tool steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | B (Inch) | C Diameter (Inch) | D (Inch) | G (Inch) | Serrations | Serration Dimensions |
| 5/8-11" | 2" | 5/16" | 5/16" | 14°" | Extra Fine | 0.094x90° |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
