Product Information
Attractive, modern-design handle that provides a comfortable grip with good ergonomic features. Available in either a durable powder-coated pebble finish or plain tumbled finish. Choice of four handle sizes, available with inch or metric tapped mounting holes. Molded-in brass inserts provide superior thread strength.
Material
| Powder Coated | ||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Aluminium Extrusion | - | Black Powder-Coated | ✔ | ✔ |
| Plain Tumbled Finish | ||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Aluminium Extrusion | - | Tumbled | ✔ | ✔ |

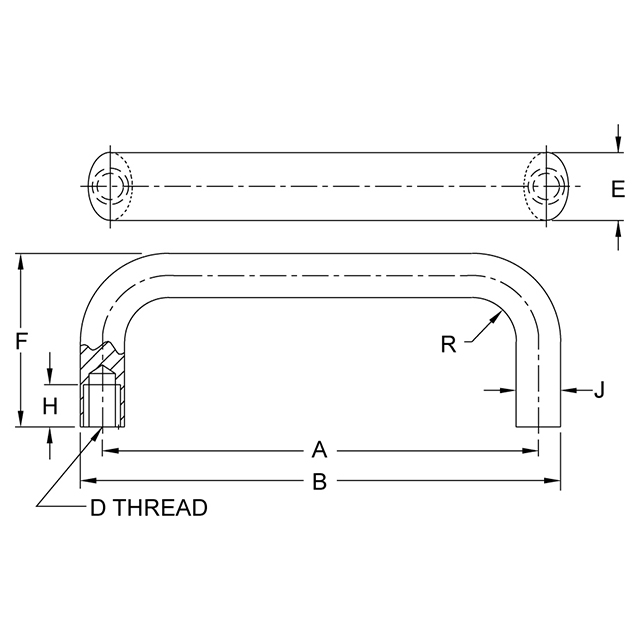

Parts Specification
| Part Number | A | B | D | E | F | H | J | R |
| CL-112-PHR-4 | 4.41 | 4.92 | 1/4-20 | .79 | 1.93 | .39 | .51 | .51 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
