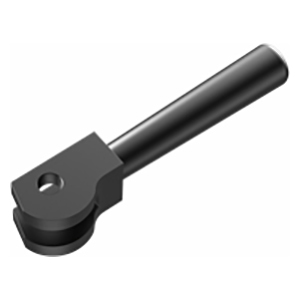

Product Information
Straddle-type cam handle that can be used with an Eye Bolt or a custom-made drawbar. Continuous-rise spiral cam locks securely in any position. Available to fit Eye Bolt sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Order matching clevis pin separately below.

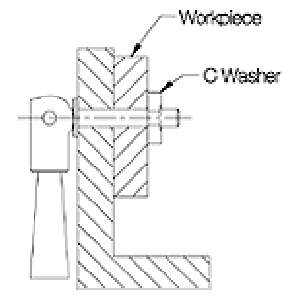

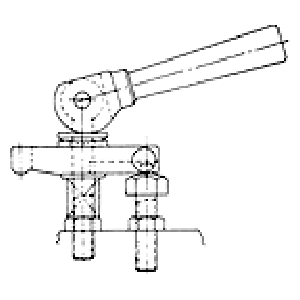

Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Mild Steel | carburized-hardened | Black Oxide | ✔ | ✔ |
Parts Specification

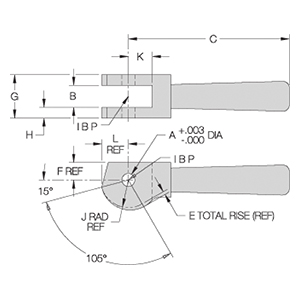

| Part Number | MATCHING EYEBOLT SIZE | A DIA NOMINAL | A DIA ACTUAL | B NOMINAL | B ACTUAL | C | E | F | G | H | J | K | L |
| CL-14-CH | 5/8-11 | 5/8 | .626 | 5/8 | .641 | 4-29/32 | .109 | 9/16 | 1-1/4 | 5/16 | .92 | .85 | .89 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
