Carr Lane CL-1D-FSS-BO-PACKOF2 | M6 Thread x 0.250" Diameter Ball Feet - Type D

Product Information

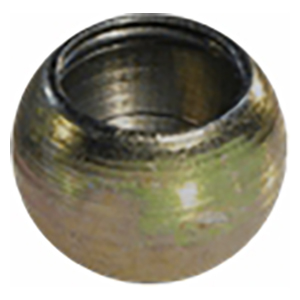

Type D swivel feet are ideal for clamping in a slot or an inside corner. These feet are available in the following materials and finishes, each available in five sizes to fit swivel-screw bodies from 1/4-20 to 5/8-11 (M6 to M16 in metric). Made in USA.          Steel, Zinc Plated Yellow Chromate          Steel, Black Oxide Finish

Patented Design

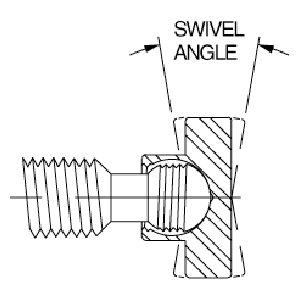

Feet for Swivel Screws are an important part of our patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20 Degree total angle). Foot threads are left-hand to positively prevent accidental backout during use.

Material

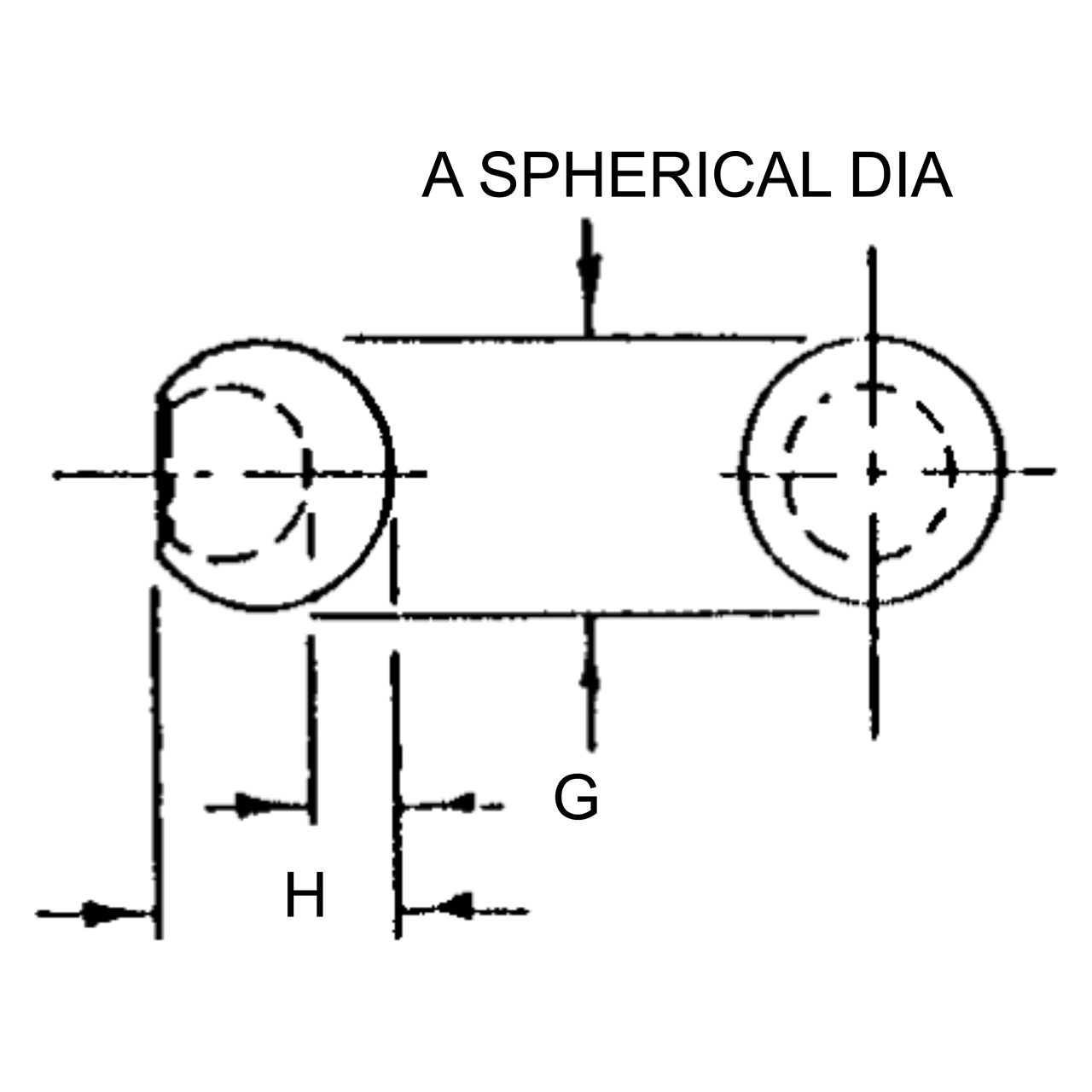

Parts Specification
