Product Information

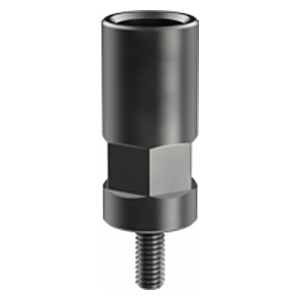

Compact mounting adaptor for long-arm Hook Clamps. Precision bored hole for smooth swing action. Available in three sizes, with mounting screws 5/16-18, 1/2-13, and 5/8-11 (M8, M12, and M16 in metric). For high-rise clamping, a Riser Cylinder can be used to extend the reach of these Hook-Clamp Holders

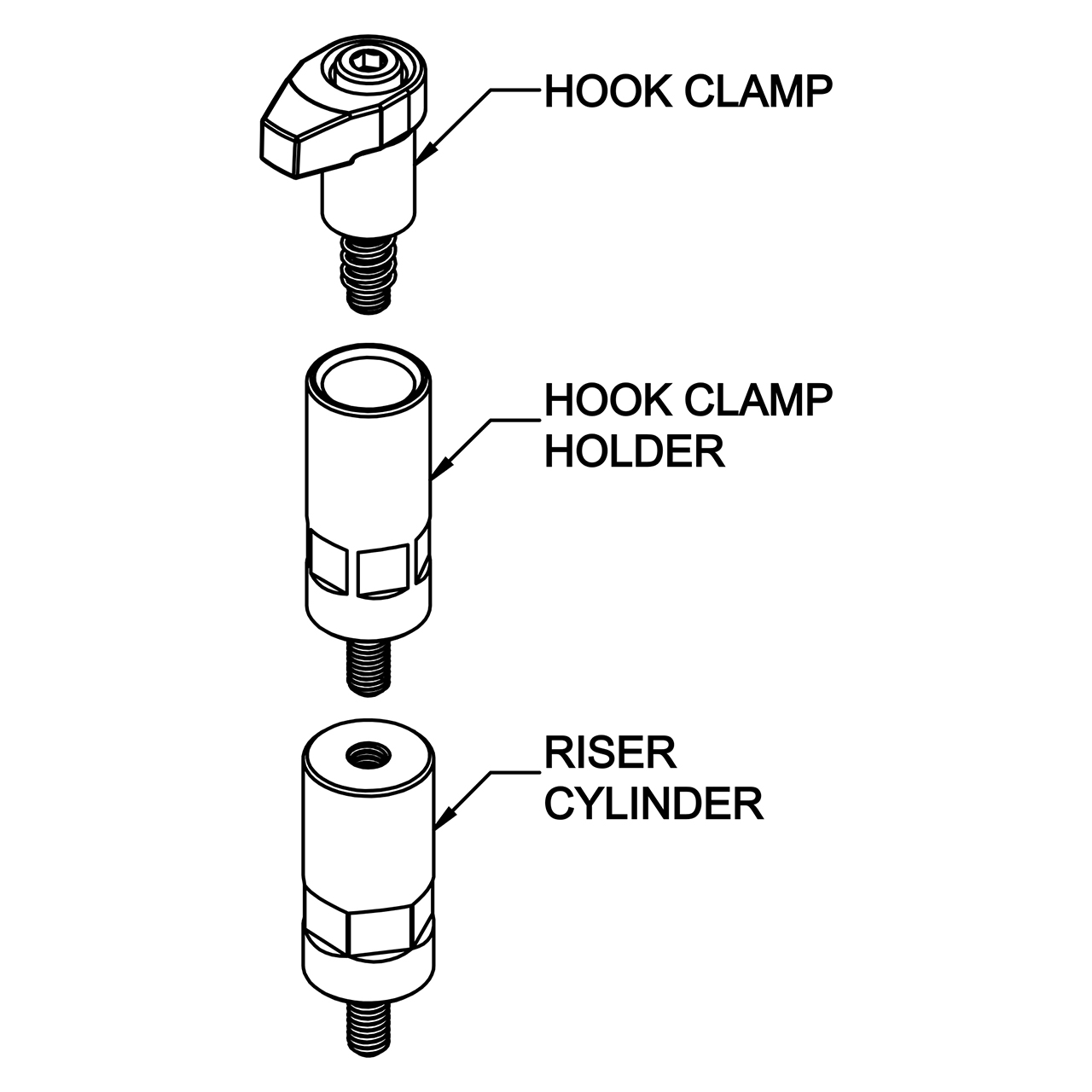

Application Information
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1045 Steel | - | Black Oxide | ✔ | ✔ |

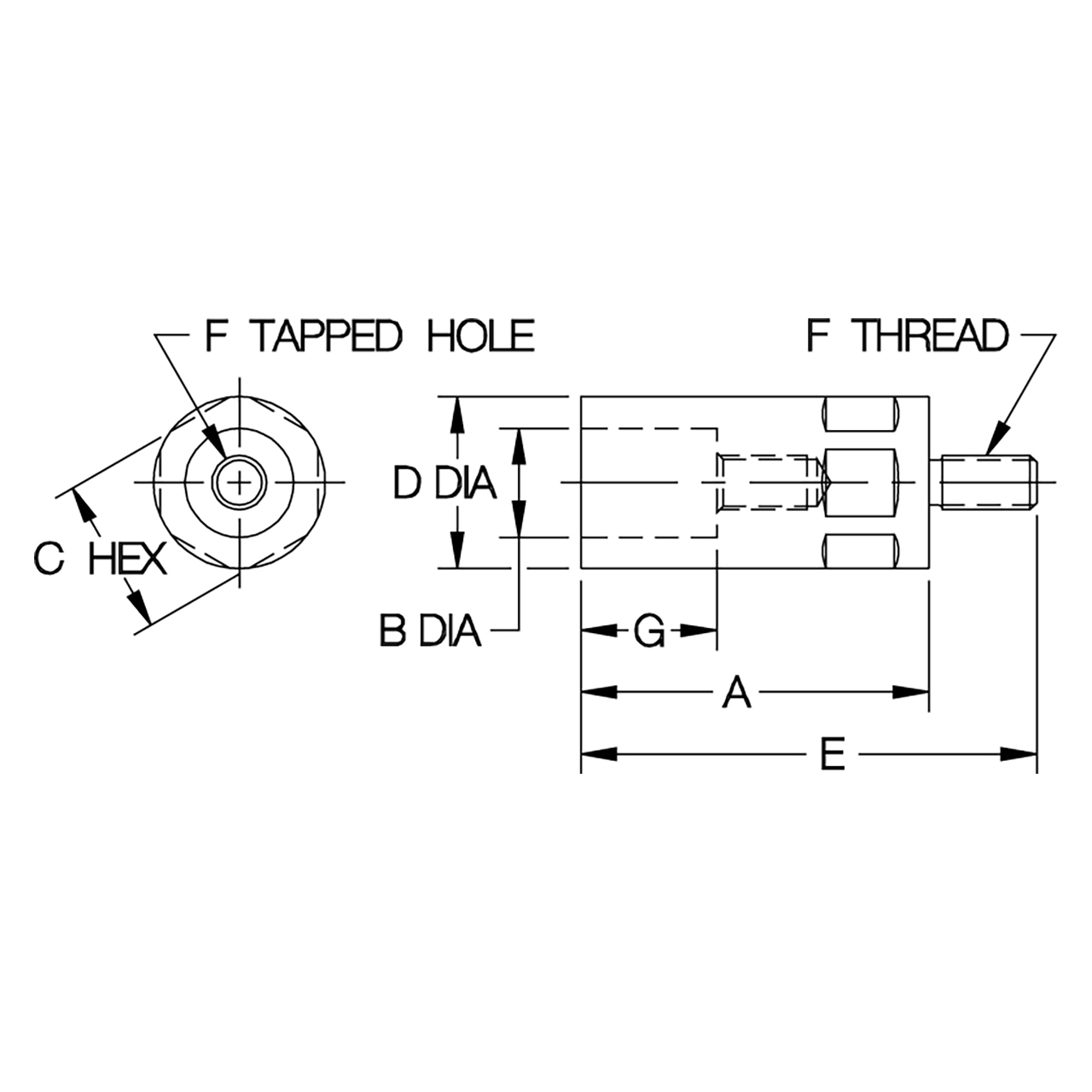

Parts Specification
| Part Number | F THREAD SIZE | A | B DIA +/-.0004 | C | D DIA | E | G |
| CL-2-CACH-1 | 1/2-13 | 3-1/8 | 1.0012 | 1-7/16 | 1-9/16 | 4-3/8 | 1-19/32 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
