Product Information

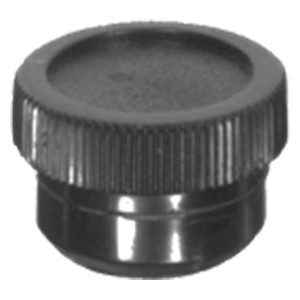

Small, easy-grip thermoplastic knob. Knurled head provides a positive grip for finger tightening in light clamping applications. Molded-in brass insert provides superior thread strength. One knob size, available with tapped-hole sizes #6-32 and #8-32. Non-standard thread sizes, reamed holes, molded-in studs, or special colors are available in quantities of 500 and above. Made in USA.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black thermoplastic (textured surface for secure gripping, excellent impact resistance, operating temperatures to 150 Degree) | - | Molded-in brass insert | ✔ | ✔ |

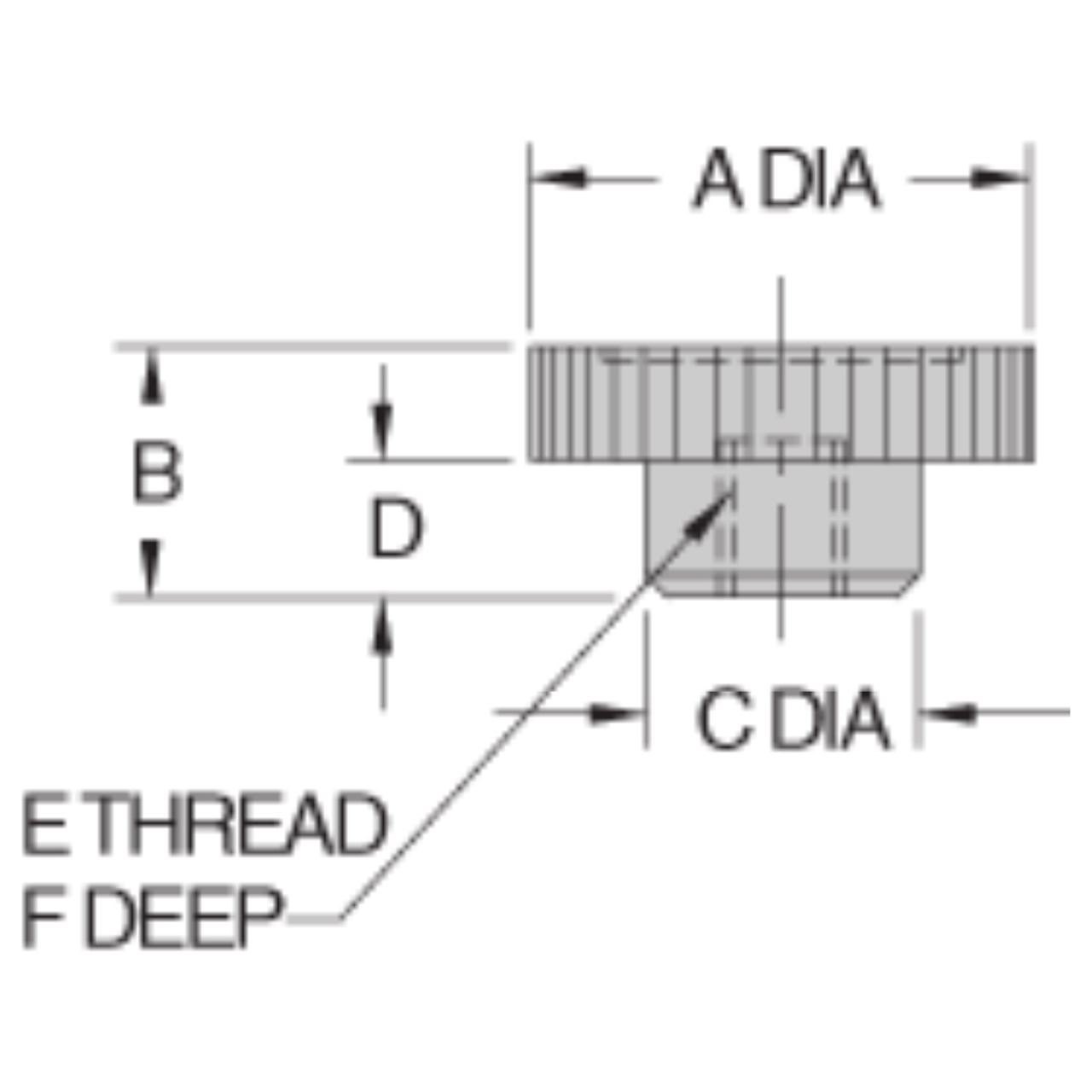

Parts Specification
| Part Number | A DIA | B | C DIA | D | E THREAD | F |
| CL-202-KTK-PACKOF2 | 3/4 | 15/32 | 5/8 | 1/4 | #6-32 | 5/16 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
#6-32
Diameter (Inch):
3/4"
Diameter (Decimal Inch):
0.7500"
Diameter (mm):
19.05mm
