Product Information

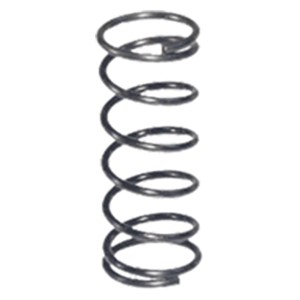

Sturdy spring that holds up a clamp strap for clear part loading. Available in steel to fit stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), and in stainless steel to fit stud sizes from #10-32 to 3/8-16 (M5 to M10 in metric).
Application Information
Material
| Steel | |||||
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Clamp Springs | Spring Steel | - | Black Oxide | ✔ | ✔ |
| Stainless Steel | |||||
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Clamp Springs | 300-series stainless steel | - | - | ✔ | ✔ |
Parts Specification

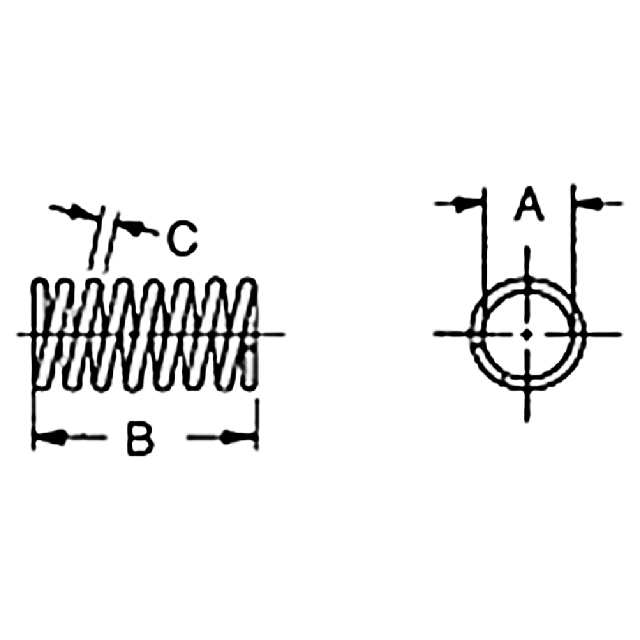

| Part Number | FITS STUD SIZE | A DIA | B | C DIA | NUMBER OF COILS |
| CL-2430.7-PACKOF5 | #10-32 or M5 | 13/64 | .7 | .042 | 5-1/2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Size:
M5
Diameter (Inch):
13/64"
Diameter (Decimal Inch):
0.2000"
Diameter (mm):
5.16mm
