Carr Lane CL-250-00-QRFP | Round Fixture Plate

$1,173.87
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50018605
UPC:
Weight:
1.23 LBS
Shipping:
Free Shipping

Round Fixture Plates for Quintus 2 (250mm)

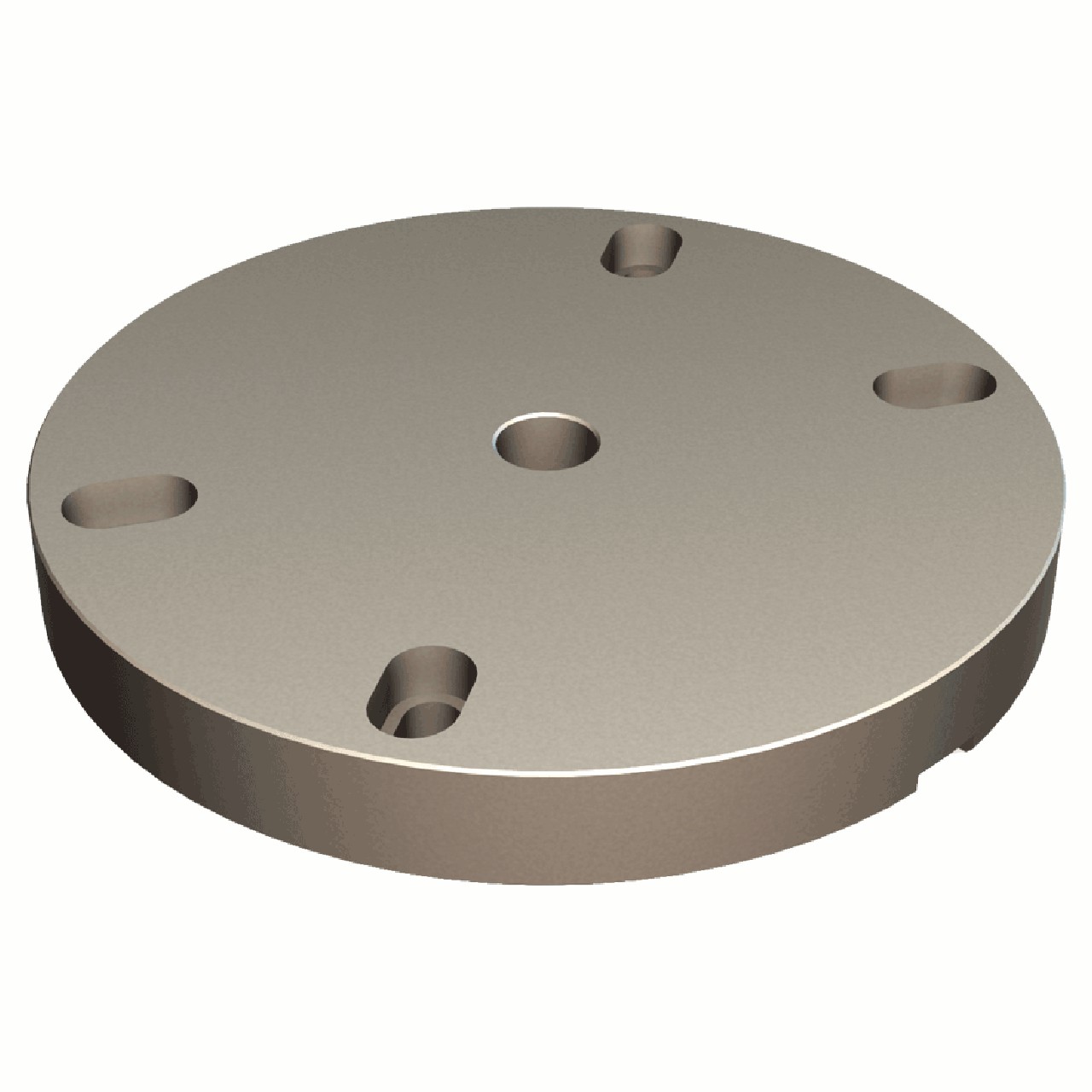

These Quintus Fixture Plates are designed to mount on a Quintus 2 Quick-Change Riser with accurate center location. A Quintus 2 Riser provides quick-change fixturing benefits and additional height for spindle clearance. Made in USA.

Plate Options

250mm Blank

Mounting on a Quintus 2 Riser

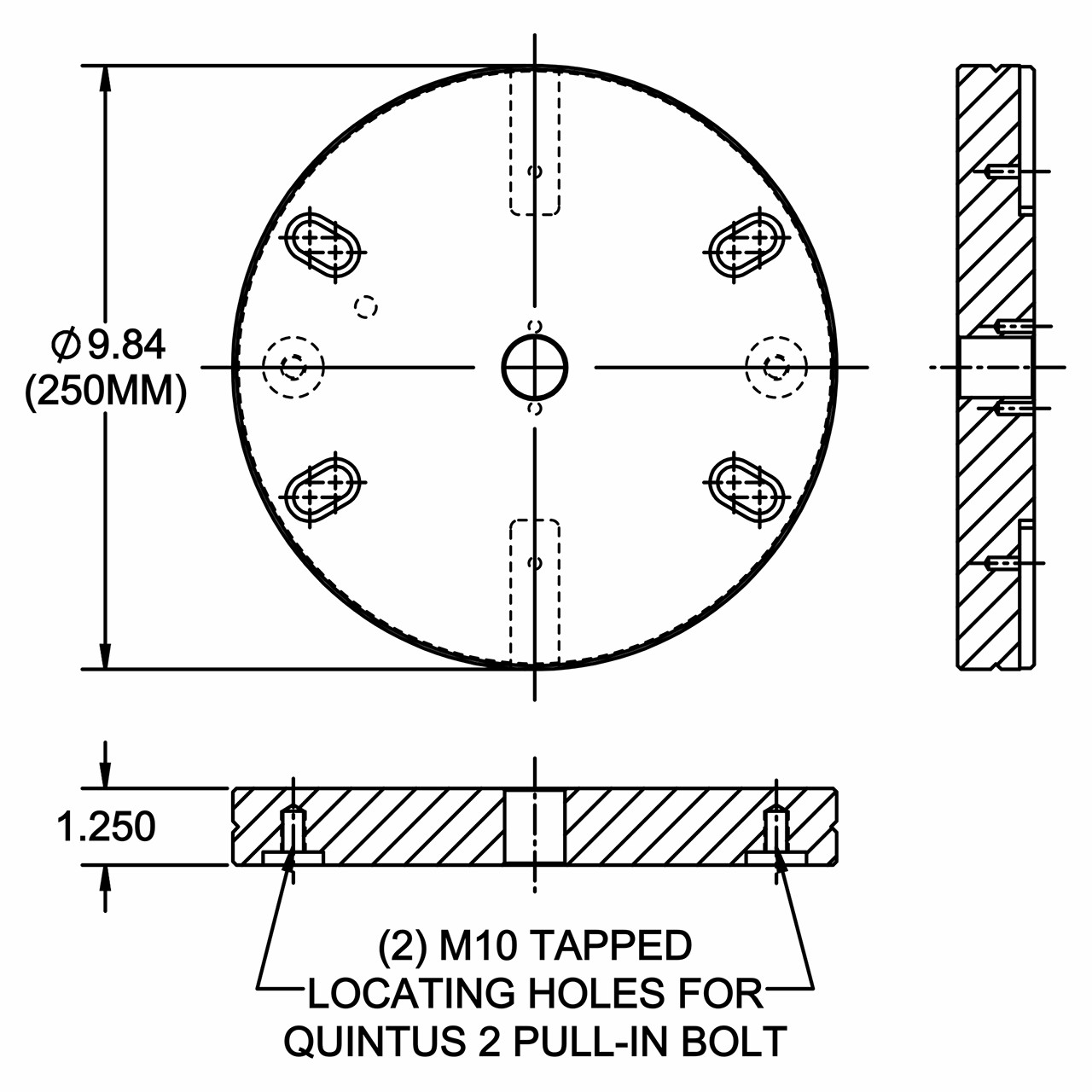

Before using the fixture, install both Quintus 2 pull-down bolts in the fixture plate's M10 counterbored bottom locating holes (order separately – see Dimensions page for part number). To locate and clamp the fixture plate, the Quintus 2 riser utilizes these two pull-down bolts – #1 with zero-point centering, #2 with single-axis centering. First, turn Quintus mechanism #1, then turn Quintus mechanism #2. Each exerts 4500 lbs of force on its pull-down bolt.

Material

ITEM Material Heat Treat Finish DFARS RoHS
Body Carbon Steel - Black Oxide Yes Yes
Bushings High Carbon Steel Heat Treated - Yes Yes

Parts Specification

TypePlate DiameterMounts OnWorkholder OptionsWeight (lbs)
Blank250mmQuintus 2Custom25.4 lbs
