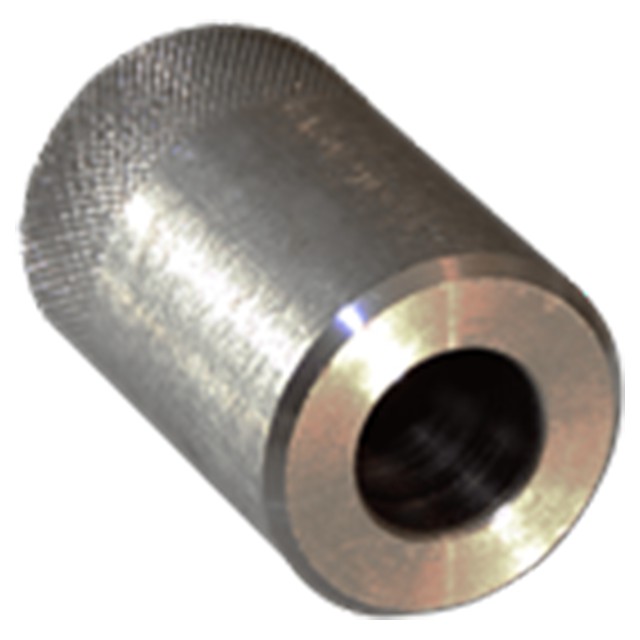

Carr Lane CL-3-BLR-S | 3/16" Diameter Receiver Cap

Ball Lock Receiver Caps

Receiver Caps are ideal for securing Ball Lock Pins used in clevis applications, especially when the through-hole has excess clearance. The Receiver Cap's inside diameter fits the Ball Lock Pin exactly, and is stepped to provide a perfect locking surface for the balls. Please note that using a Receiver Cap reduces the Ball Lock Pin's effective grip length (see D dimension for reduction in grip length). Made in USA.

Application Information

Ball Lock Receiver Caps are ideal for securing Ball Lock Pins used in clevis applications, especially when the through-hole has excess clearance.

Optional Cable

Receiver Cap is tapped to allow fastening the terminal end of a standard Ball Lock Pin cable assembly, CL-82-KA-12.0 (12.0" long), and includes a fastening screw.

Material

300-series Stainless Steel, passivated. DFARS and RoHS compliant.

Parts Specification
