Standard Ring
Mini-size stainless steel version of our Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the center nut.
Application Information

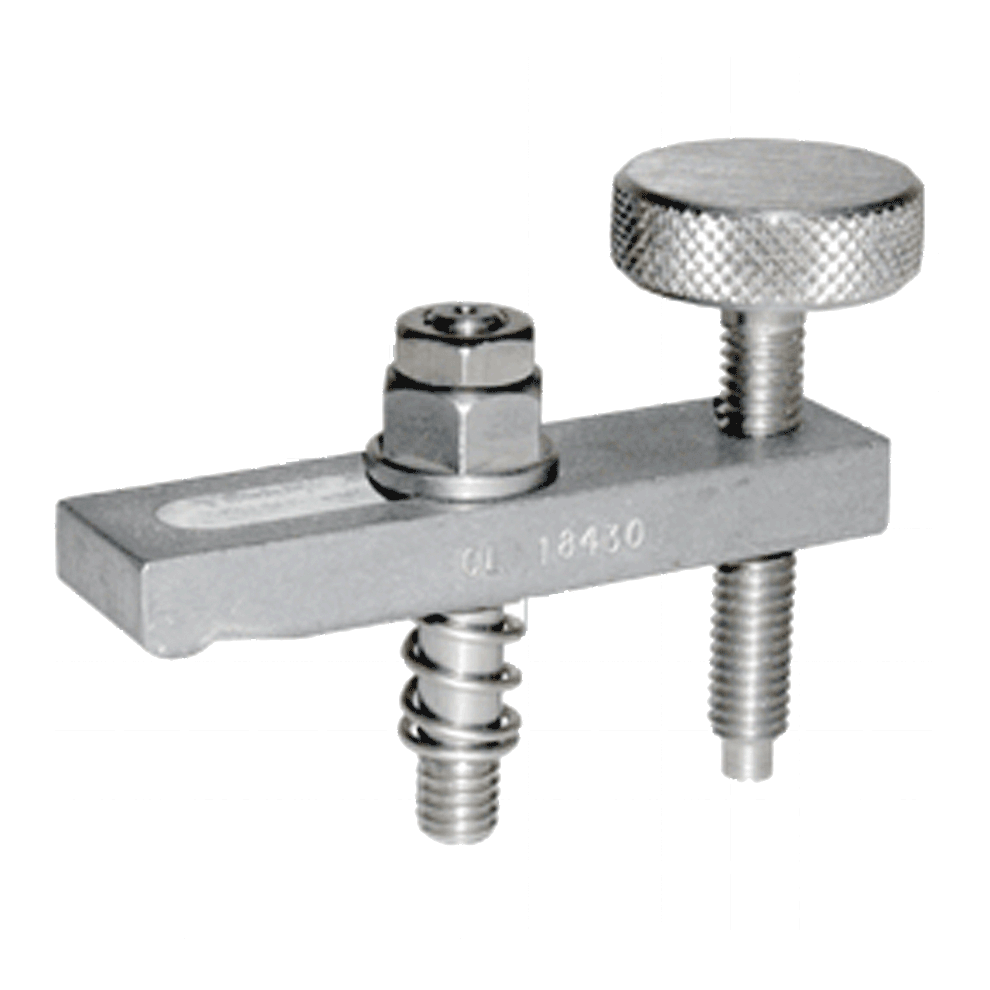

Assembly with Knurled-Head Screw
This assembly includes a Tapped-Heel Clamp Strap plus the following items: Knurled-Head Screw Flange Nut Fixture Stud Clamp Spring Flat Washer Jam Nut

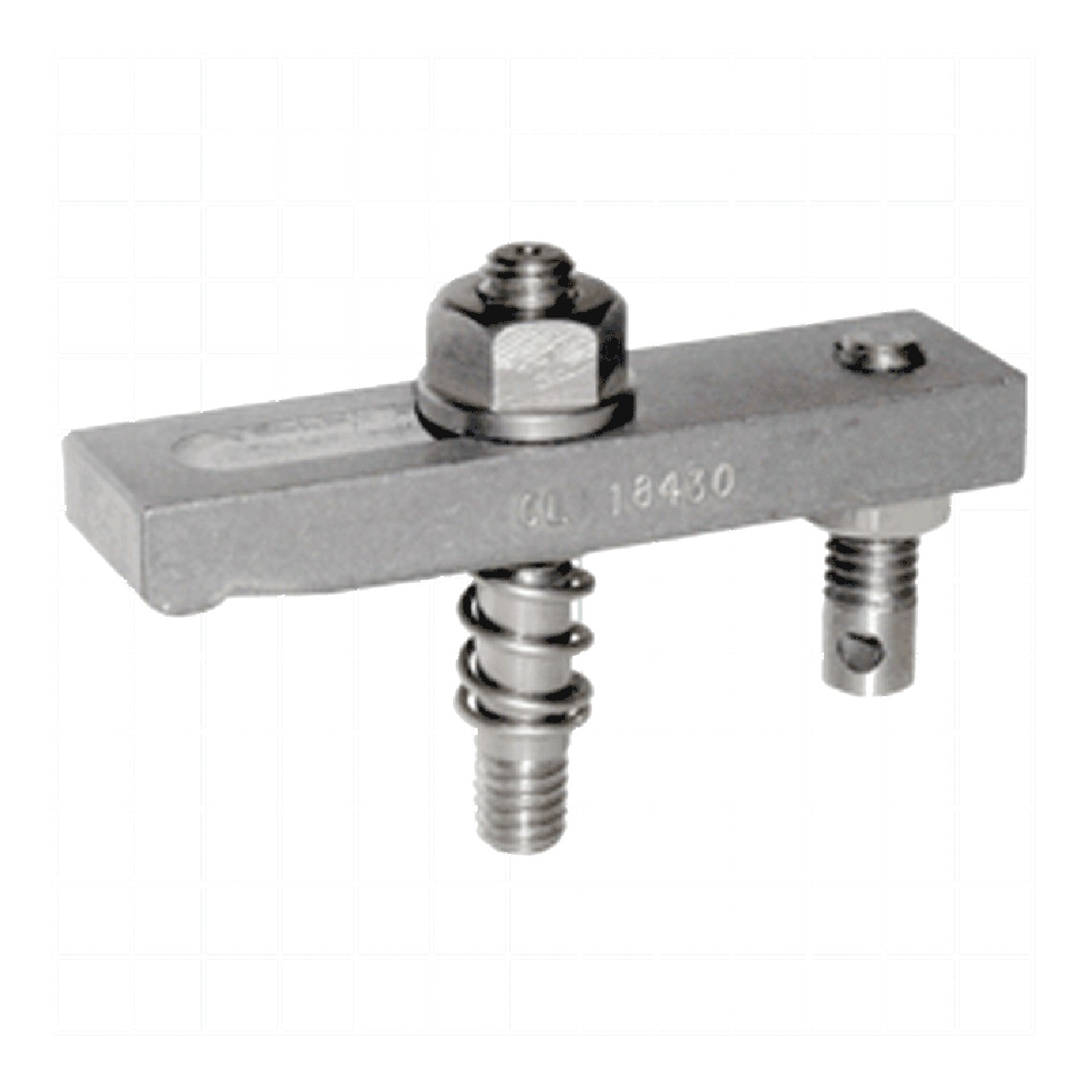

Assembly with Clamp Rest (-1)
This assembly includes a Tapped-Heel Clamp Strap plus the following items: Clamp Rest Flange Nut Fixture Stud Clamp Spring Flat Washer Jam Nut

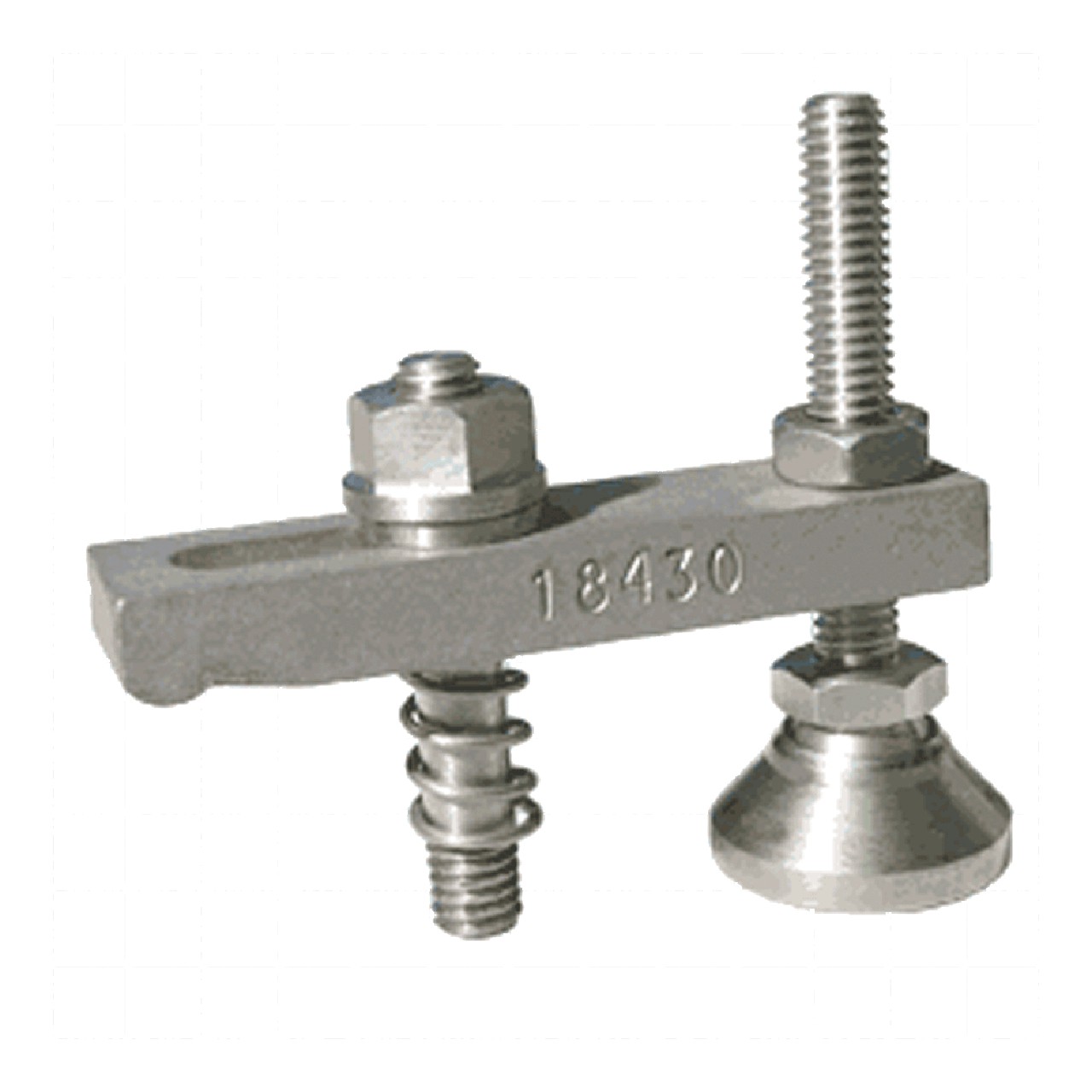

Assembly with Leveling Foot (-2)
This assembly includes a Tapped-Heel Clamp Strap plus the following items: Leveling Foot Flange Nut Fixture Stud Clamp Spring Flat Washer

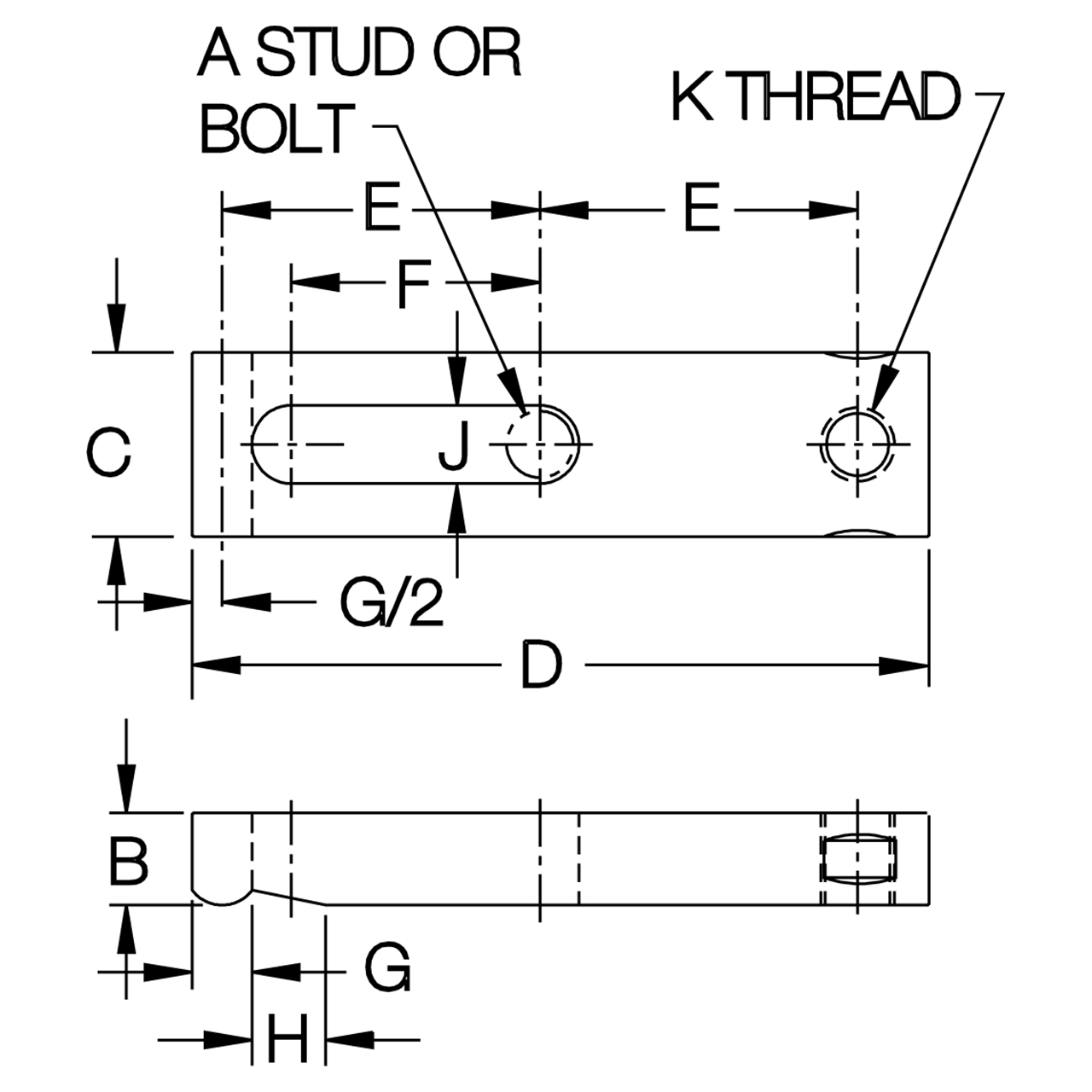

Material
MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
300-Series Stainless Steels | - | - | ✔ | ✔ |
Parts Specification
Thread Size | A (inch) | B (inch) | C (inch) | E (inch) | Clamp Strap | Knurled Head Screw | Clamp Spring | Flat Washer | Fixture Stud | Flange Nut | Jam Nut |
5/16-18 | 2-1/2" | 3/4" | 3/8" | 1" | CL-18425 | CL-23620 | CL-2450.7 | CL-256 | CL-11620 | CL-126 | CL-5-JN-S |
