Product Information

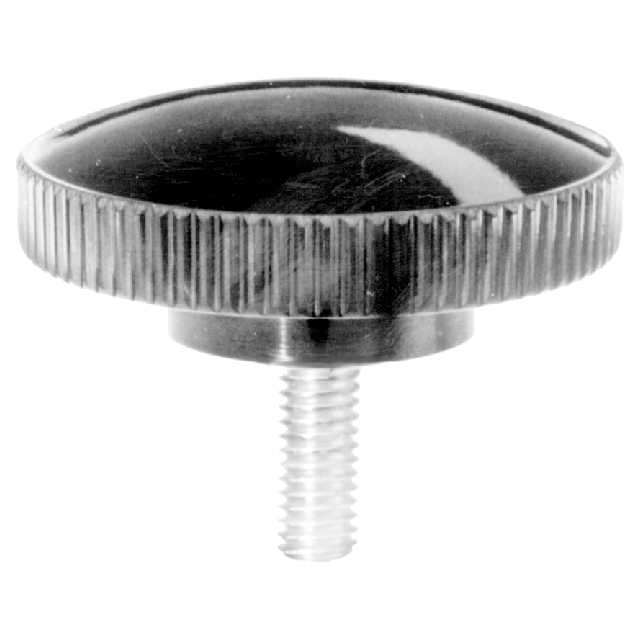

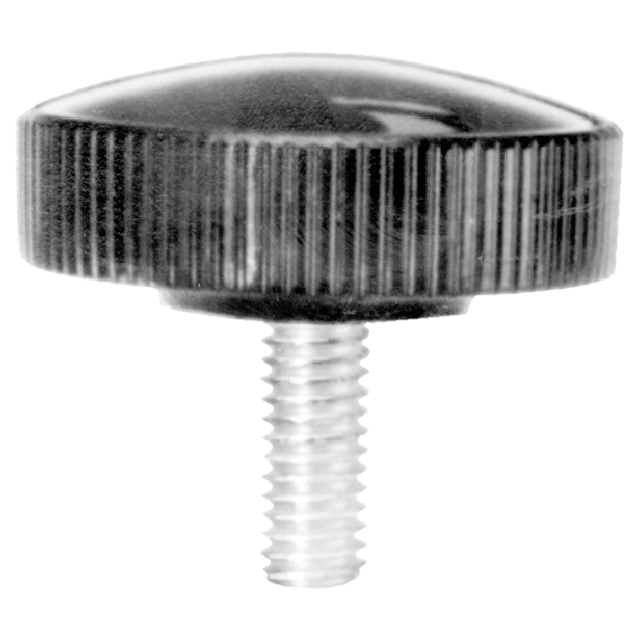

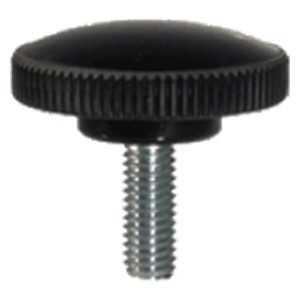

Small, easy-grip phenolic knob. Knurled head provides a positive grip for finger tightening in light clamping applications. Molded-in steel stud provides superior strength. Choice of two knob sizes, with stud sizes from #6-32, 1/4-20, and 3/8-16. Non-standard thread sizes, reamed holes, or other lengths of molded-in studs are available in quantities of 500 and above. Made in USA.

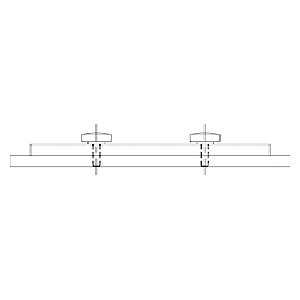

Application Information
Available Sizes
3/8-16 #6-321/4-20
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Black phenolic plastic (glossy smooth finish, extremely hard, electrical insulator, operating temperatures to 300 Degree, resistant to oils and most common chemicals) | - | Molded-in brass insert (or mild steel stud, zinc plated clear chromate) | ✔ | ✔ |
Parts Specification

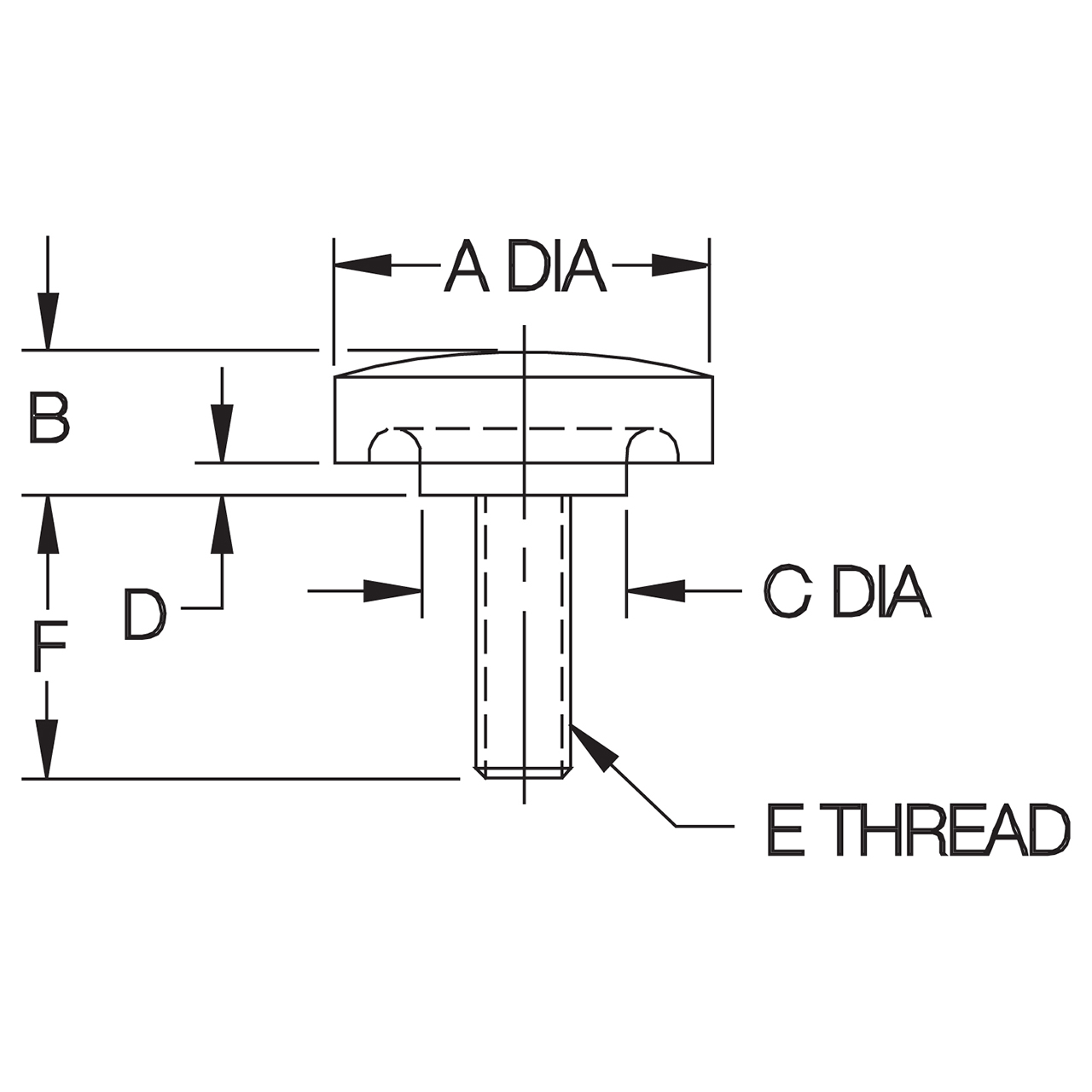

| Part Number | A DIA | B | C DIA | D | E THREAD | F |
| CL-436-KTK-12-PACKOF2 | 1 | 13/32 | 1/2 | 1/16 | 1/4-20 | 3/4 |
