Product Information

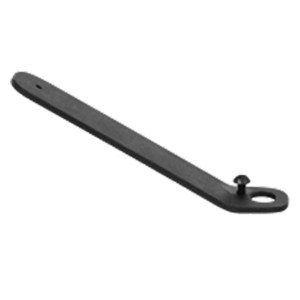

New item! Permanent Bushing Handles are designed for one-time installation of a size OD 5/16 – 1/2” Slip/Fixed Bushing directly into the steel handle, where it is fastened with a tamper-resistant one-way screw to create a permanent assembly. The permanent bushings handle also has a tapped hole for accurate drilling without the need for a rigid fixture. Carr Lane Permanent handle bushings are lightweight and have a functional design that facilitates efficient drilling in difficult to reach applications. Permanent bushing handles manufactured by Carr Lane are proudly made in the USA.
Material
ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
Handle | Mild Steel | - | Black Oxide | ✔ | ✔ |
Look Screw | Mild Steel | - | Black Oxide | ✔ | ✔ |

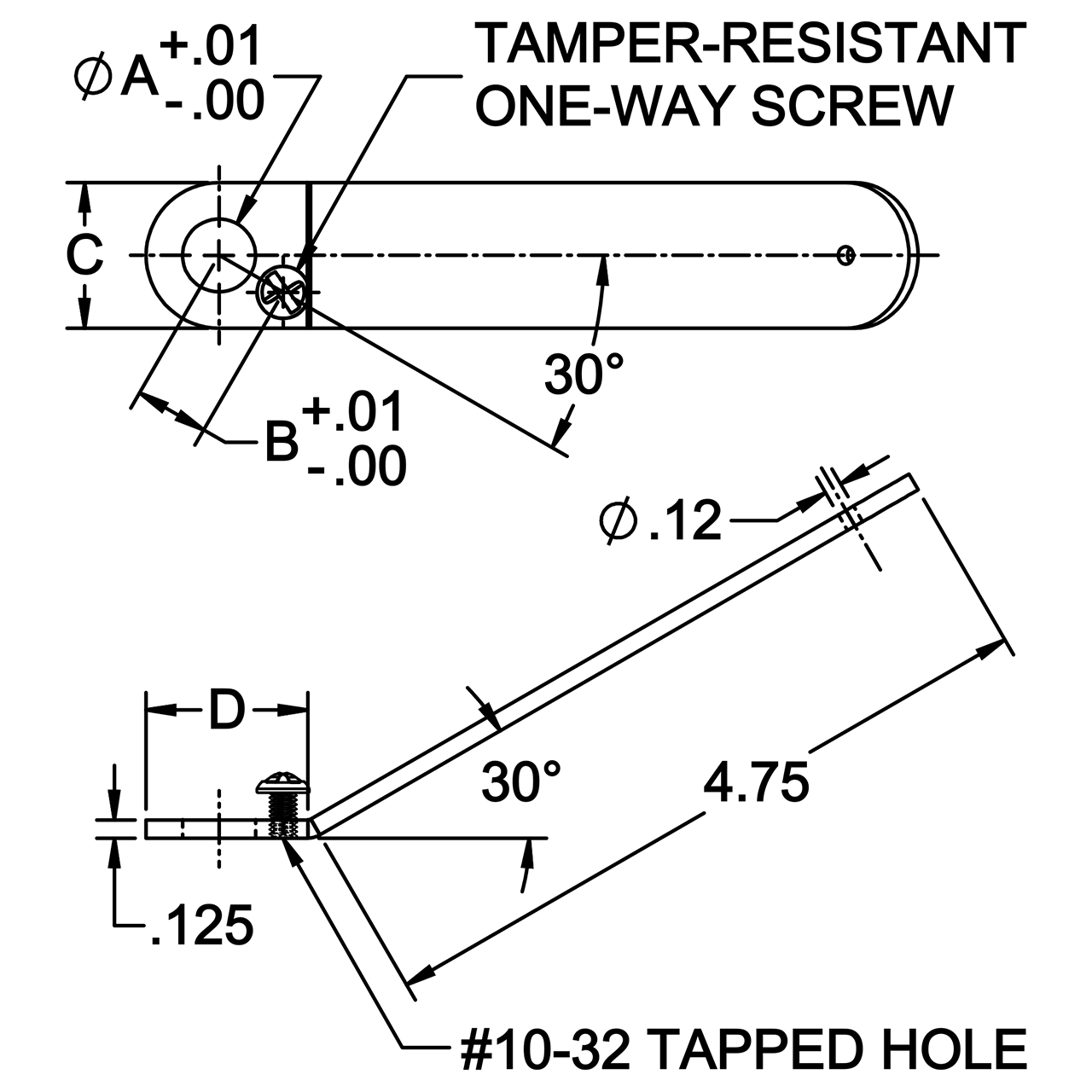

Parts Specification
Part Number | FOR SF BUSHING OD SIZE | A DIA | B | C | D |
CL-48-BH | 3/4 | .751 | .633 | 1 | 1.12 |
