Carr Lane CL-5-SCB | 1/2 Diameter Construction Ball – Shoulder Type

Product Information

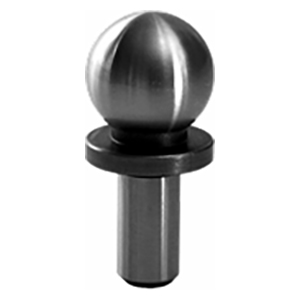

Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002" TIR. Construction Balls are available with 1/4, 3/8, 1/2, and 3/4" ball sizes (6, 12, and 20mm in metric). Both in steel and stainless steel. Made in USA.

Application Information

Shoulder-Type Construction Balls provide a reference point in three dimensions.

Material

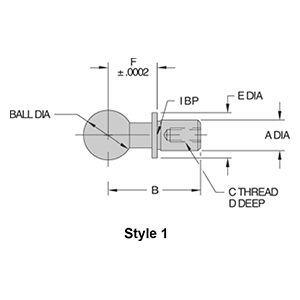

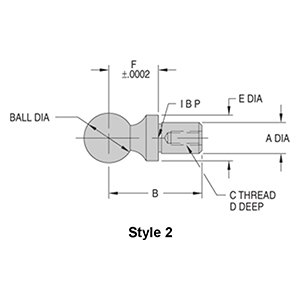

Parts Specification

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
