Hand Wheels-Two-Spoke Square Design Aluminium with Tapped Hole for Handle
High-quality, modern-design aluminum Hand Wheel with two spokes. Rim is machined and highly polished on all sides. Spokes are shot blasted to a satin Finish. These Hand Wheels are Finish-bored to the standard shaft Diameter (Inch)meter for their size, exactly concentric and square to the rim, and are tapped for a Solid or Revolving Handle.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Aluminum | - | Gravity Die Cast | ✔ | ✔ |
Parts Specification

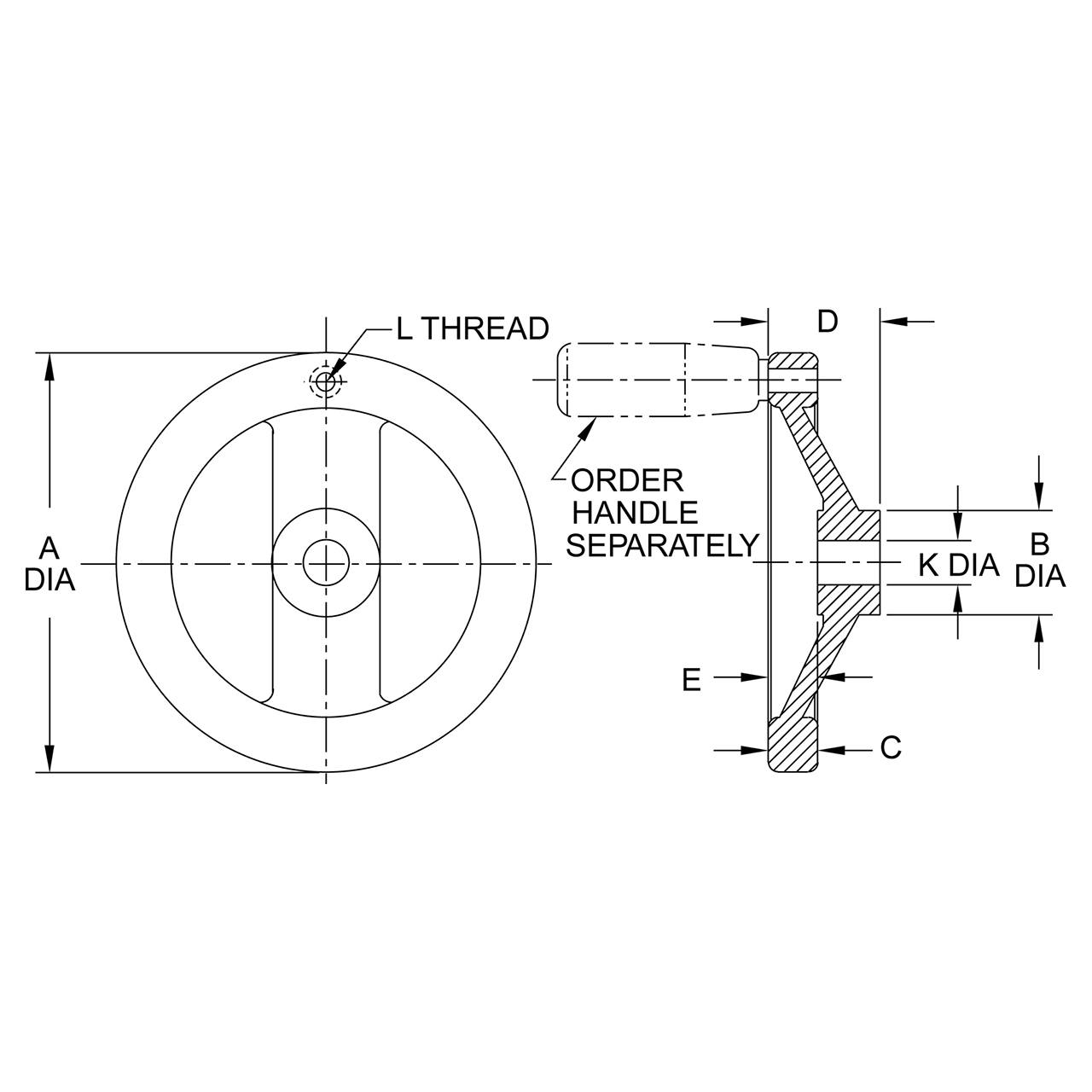

| A Diameter (Inch) | B Diameter (Inch) | C (Inch) | D (Inch) | E (Inch) | K Diameter (Inch) | L Thread | Matching Handle Size |
| 4.92" | 1.22" | 0.59" | 1.30" | 0.59" | 0.375" | 1/4-20 | SIZE 2 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
